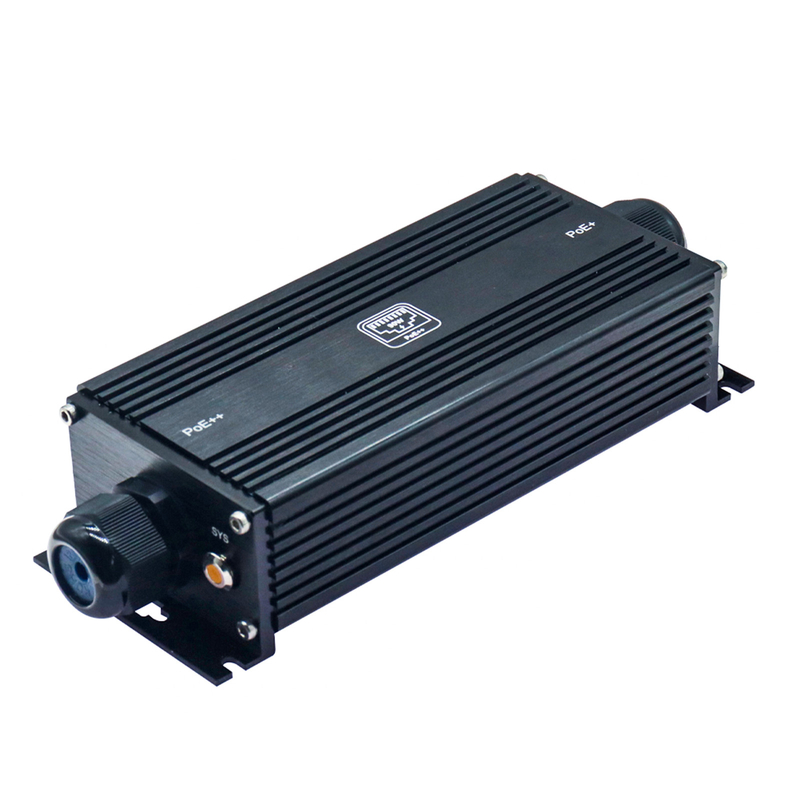

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP-IPE101
Price: 55 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE,FCC,RoSH

Nomor model: LNK-WP-IPE101

Dokumen: E-link LNK-WP-IPE101 Waterp....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 55$

Kemasan rincian: paket standar ekspor

Waktu pengiriman: 2-5 hari kerja

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan: 5000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                            Gigabit Industrial PoE Extender, IP67 Waterproof Industrial PoE Extender


Lewati Tarif Data:	10/100/1000 Mbps setengah/dupleks penuh	Penetapan Pin PoE:	1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
Koneksi Cascade:	Mendukung 3 kelas	Dimensi:	195 x 75 x 46 mm
Pemasangan:	Dinding rak

Lewati Tarif Data:	10/100/1000 Mbps setengah/dupleks penuh
Penetapan Pin PoE:	1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
Koneksi Cascade:	Mendukung 3 kelas
Dimensi:	195 x 75 x 46 mm
Pemasangan:	Dinding rak

Deskripsi

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Water-Proof Outdoor Industrial Gigabit PoE Extender

LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.

Water-Proof Outdoor Industrial Gigabit PoE Extender Advantages

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 1 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Application

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) 0

Ordering Information

Model	Description
LNK-WP-IPE101	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Mounting Options	Wall Mount Bracket is included.
