12~48V DC Power Input Industrial 10G 60W PoE IEEE802.3at Injector

Name: 12~48V DC Power Input Industrial 10G 60W PoE IEEE802.3at Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ601-60
Price: 57.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC

Nomor model: LNK-INJ601-60

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1pc

Harga: Dapat dinegosiasikan

Kemasan rincian: Paket Ekspor Standar Adaptor PoE Injector

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram, Paypal

Menyediakan kemampuan: 1000 PCS/BULAN

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      IEEE802.3at Industrial PoE Injector, Industrial 10G PoE Injector, 48V DC Industrial PoE Injector


Kata kunci:	Adaptor Injektor PoE	Daya masukan:	12~48VDC (Blok Terminal)
Dimensi (WxDxH):	95x70x30 mm	Berat badan:	0.25kg
Opsi Pemasangan:	DIN-Rail / Wall-mount	Selubung:	Kotak Aluminium

Kata kunci:	Adaptor Injektor PoE
Daya masukan:	12~48VDC (Blok Terminal)
Dimensi (WxDxH):	95x70x30 mm
Berat badan:	0.25kg
Opsi Pemasangan:	DIN-Rail / Wall-mount
Selubung:	Kotak Aluminium

Deskripsi

12~48V DC Power Input Industrial 10G 60W PoE IEEE802.3at Injector

12~48V DC Power Input Industrial 10G 60W PoE Injector

PoE Injector Adapter Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000/2.5G/5G/10G Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	14,880,000pps (10Gbps)
Cabling:	10/100/1000/2.5G/5G/10G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)

Overview

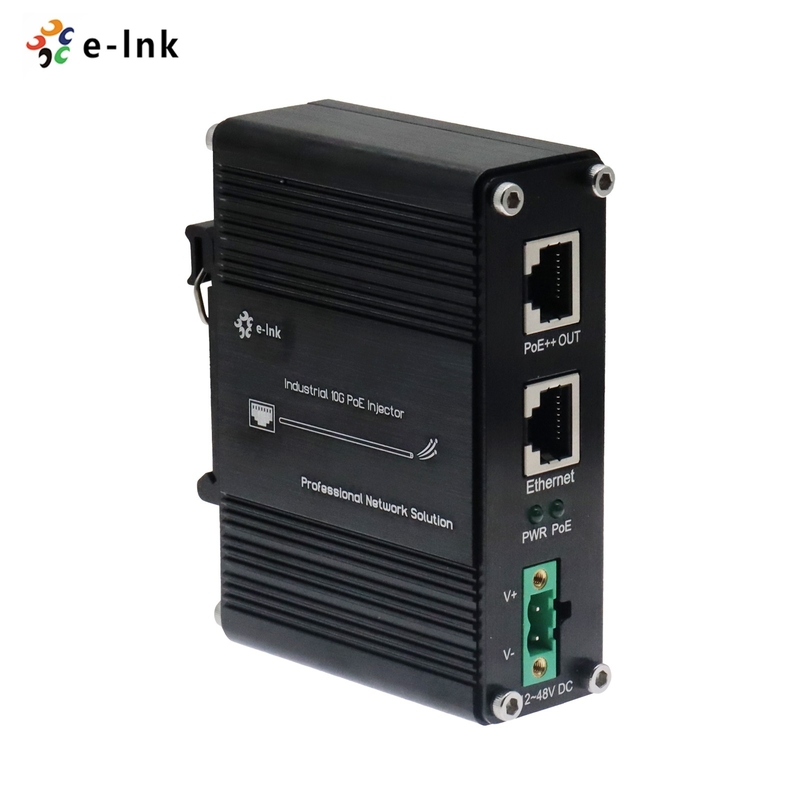

The LNK-INJ601-60 product is a Hardened 10G High Power 60W PoE Injector allows you to connect the IEEE 802.3 af/at

PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.

Applicaton

12~48V DC Power Input Industrial 10G 60W PoE IEEE802.3at Injector 0

Ordering Information

Model	Description
LNK-INJ601-60	12~48VDC Power Input Industrial 10G 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
