Gigabit PoE Injector IEEE802.3af 15.4W

Name: Gigabit PoE Injector IEEE802.3af 15.4W
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE300
Price: 17.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC

Nomor model: LNK-POE300

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1pc

Harga: US$15-US$19/pc

Kemasan rincian: Paket Ekspor Standar Adaptor PoE Injector

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram, Paypal

Menyediakan kemampuan: 1000 PCS/BULAN

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      IEEE802.3af Gigabit PoE Injector, 15.4W Gigabit PoE Injector


Kata kunci:	Adaptor Injektor PoE	Suhu operasi:	-10°C hingga 50°C (14°F hingga 122°F)

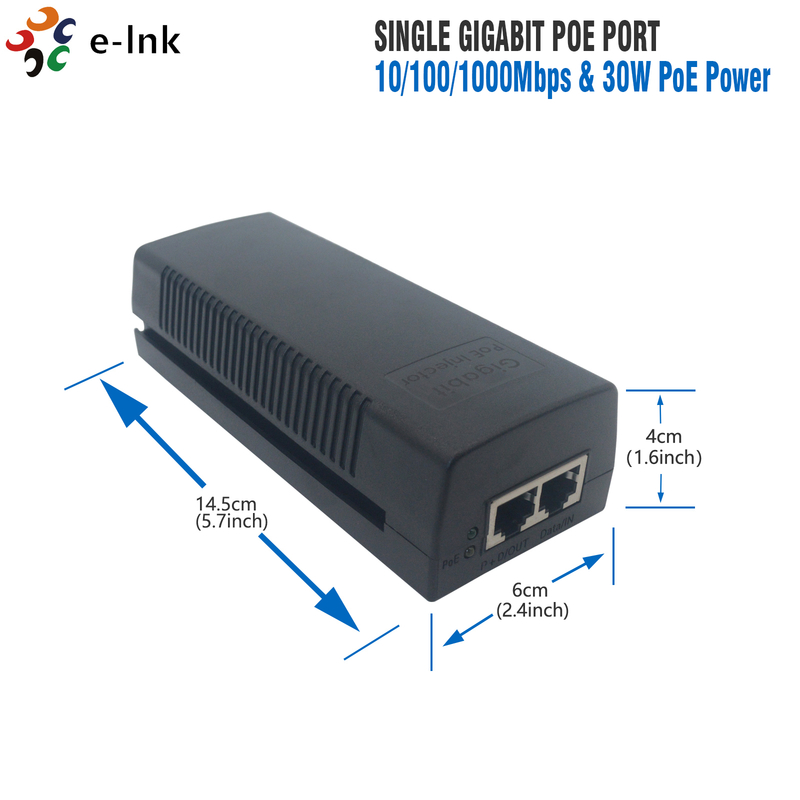

Berat badan:	0.25kg	Dimensi (WxDxH):	145x58x39mm
Opsi Pemasangan:	Desktop	Selubung:	kotak plastik

Kata kunci:	Adaptor Injektor PoE
Suhu operasi:	-10°C hingga 50°C (14°F hingga 122°F)
Berat badan:	0.25kg
Dimensi (WxDxH):	145x58x39mm
Opsi Pemasangan:	Desktop
Selubung:	kotak plastik

Deskripsi

Gigabit PoE Injector IEEE802.3af 15.4W

Gigabit PoE Injector IEEE802.3af 15.4W

PoE Injector Adapter Advantages

► Compliant with IEEE802.3af Standard

► Support 10/100/1000Base-T

► Compliant with Limited Power Source (LPS)

► High Efficiency > 85%

► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	IEEE802.3af PoE (15.4W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Connector:	LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13
Environmental
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Voltage Range:	100-240V AC @50/60Hz.
Output Voltage:	DC 48V
Power Consumption:	15.4 watts max.
PoE (Power over Ethernet)
Standard:	IEEE 802.3af
Port:	RJ45
Pin Assignment	Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-)
PoE Power Output	DC 48V/15.4-watt PoE via 2-pairs

Overview

LNK-POE300 15.4W-48V Gigabit POE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE802.3af

certified midspan. It is a single port indoor PoE injector that can provide up to 15.4W based on the IEEE 802.3af standard.

Application

Gigabit PoE Injector IEEE802.3af 15.4W 0

Ordering Information

Model	Description
LNK-POE300	PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3af 15.4W
