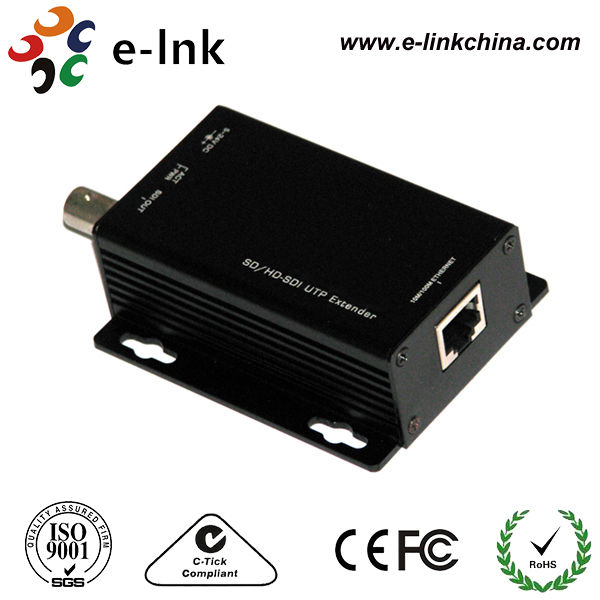

HD-SDI Video Extender over CAT5 / 6 Kit

Name: HD-SDI Video Extender over CAT5 / 6 Kit
Brand: E-link China Technology Co.,LTD
SKU: LNK-DTS050
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: ROHS,FCC,CE

Nomor model: LNK-DTS050

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Paket Ekspor Standar Extender

Waktu pengiriman: 3-12 Hari Kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 1000 buah/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                  HD-SDI Video Extender Kit, HD-SDI Video Extender Kit


Kata kunci:	Video Extender	Suhu operasi:	-10°C ~ 60°C / 14°F ~ 140°F
Dimensi (P x L x T):	98x65x28mm / 3,85x2,55x1,1 inci	Sumber daya listrik:	DC12V/1A
Konsumsi Daya:	2.5W (TX dan RX)

Kata kunci:	Video Extender
Suhu operasi:	-10°C ~ 60°C / 14°F ~ 140°F
Dimensi (P x L x T):	98x65x28mm / 3,85x2,55x1,1 inci
Sumber daya listrik:	DC12V/1A
Konsumsi Daya:	2.5W (TX dan RX)

Deskripsi

HD-SDI Video Extender over CAT5 / 6 Kit

HD-SDI Video Extender over CAT5 / 6 Kit

HD-SDI Video Extender over CAT5 / 6 Kit Advantages

► SDI Standard: HD-SDI, SD-SDI

► Up to 50m / 160ft via CAT5e cable

► Up to 60m / 200ft via CAT6 cable

► Supports SDI-SMPTE 259M-C (270Mbps);

► HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)

► LED diagnostics: sync, SDI auto-detection

HD-SDI Video Extender over CAT5 / 6 Kit Overview

LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.

HD-SDI Video Extender over CAT5 / 6 Kit Technical Indexes

Model	LNK-DTS050
Type	Transmitter	Receiver
Standard Supported	SMPTE 259M (270Mb/s), SMPTE 292M
Speed	270Mb/s, 1.485Gb/s (automatic selection)
Support Input Format	SD: 525i @ 59.94Hz, 625i @ 50Hz
	HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
	720p @ 50Hz / 59.94Hz / 60Hz
	1080i @ 50Hz / 59.94Hz / 60Hz
	1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
	@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz
Indicators	Power on (on both end)
	Sync detection (on both end)
	Link between the two units working (on both end)
Connectors	1x BNC 75 ohm female
	1x RJ45 of CAT5e/6 unshielded or shielded twisted pair
	1x power plug, 2.1mm

HD-SDI Video Extender over CAT5 / 6 Kit Ordering Information

Part No	Description of product
LNK-DTS050-T	SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter;
LNK-DTS050-R	SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver

HD-SDI Video Extender over CAT5 / 6 Kit 0
