8-Port PoE Injector

Name: 8-Port PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: Lnk-poe208 lnk-poe208at lnk-poe308 lnk-poe308at
Price: 57.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: ROHS,FCC,CE

Nomor model: Lnk-poe208 lnk-poe208at lnk-poe308 lnk-poe308at

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Paket Ekspor Standar Injektor

Waktu pengiriman: 3-12 Hari Kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 1000 buah/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      8 Port PoE Injector


Kata kunci:	Poe Adapter Injector	Suhu operasi:	0 hingga +40 ° C,
Dimensi (P x L x T):	280x186x44 (H × D × W)	Daya masukan:	90-240VAC ,50-60Hz
Berat badan:	1,5kg	Kelembaban:	Maks. 95% RH (non-kondensasi)

Kata kunci:	Poe Adapter Injector
Suhu operasi:	0 hingga +40 ° C,
Dimensi (P x L x T):	280x186x44 (H × D × W)
Daya masukan:	90-240VAC ,50-60Hz
Berat badan:	1,5kg
Kelembaban:	Maks. 95% RH (non-kondensasi)

Deskripsi

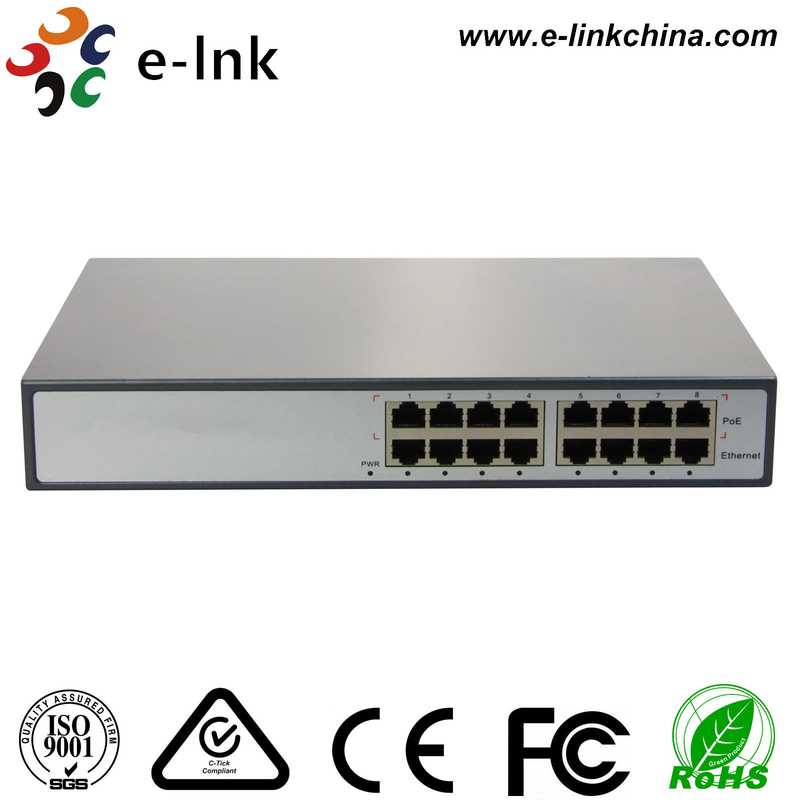

8-Port PoE Injector

8-Port PoE Injector Advantages

►Supply power to HD network surveillance cameras with Cat5e (PoE)
►16x 10/100M RJ45 ports; 1x AC input port; 8x PoE Ports
►AC input: 90V~264V
►Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)
►Coming with the Ethernet network port and PoE output port
►Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
►No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

8-Port PoE Injector Overview

These 8-Port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.

8-Port PoE Injector Technical Indexes

Parameter	Specifications
Features	Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45
	Data Input Interface 8RJ-45 10/100Base-TX/ Data Input Interface 8RJ-45 10/100/1000Base-TX
	Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	815.4W Max IEEE802.3af 830W Max IEEE802.3at
Wiring	Data provide over pairs 1/2(+) and 3/6(-)
	Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES

8-Port PoE Injector Ordering Information

Model	Decription
LNK-POE208	8-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE208AT	8-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE308	8-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE308AT	8-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
