16-Port PoE Injector

Name: 16-Port PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE216 LNK-POE216AT LNK-POE316 LNK-POE316AT
Price: 57.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: ROHS,FCC,CE

Nomor model: LNK-POE216 LNK-POE216AT LNK-POE316 LNK-POE316AT

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Paket Ekspor Standar Injektor

Waktu pengiriman: 3-12 Hari Kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 1000 buah/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      16-Port PoE Injector, 16 Port PoE Injector


Kata kunci:	Poe Adapter Injector	Suhu operasi:	0 hingga +40 ° C,
Dimensi (P x L x T):	445x260x45 (H × D × W)	Daya masukan:	90-240VAC ,50-60Hz
Berat badan:	5.5KG	Kelembaban:	Maks. 95% RH (non-kondensasi)

Kata kunci:	Poe Adapter Injector
Suhu operasi:	0 hingga +40 ° C,
Dimensi (P x L x T):	445x260x45 (H × D × W)
Daya masukan:	90-240VAC ,50-60Hz
Berat badan:	5.5KG
Kelembaban:	Maks. 95% RH (non-kondensasi)

Deskripsi

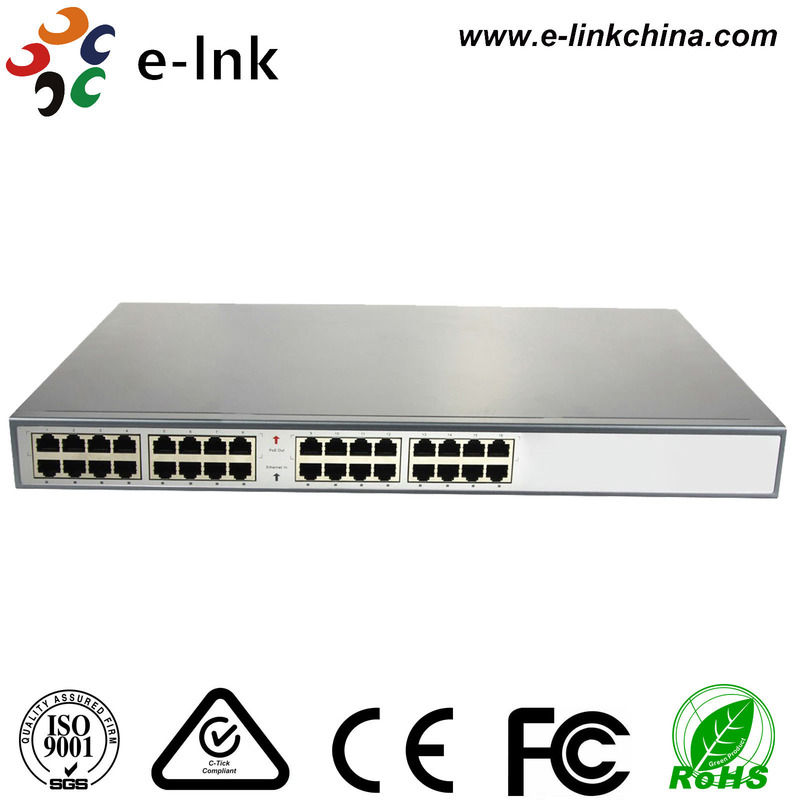

16-Port PoE Injector

16-Port PoE Injector Advantages

► Supply power to HD network surveillance cameras with Cat5e (PoE)

► 32x 10/100M RJ45 ports; 1x AC input port;16x PoE Ports

► AC input: 90V~264V

► Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)

► Coming with the Ethernet network port and PoE output port

► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

16-Port PoE Injector Overview

PoE Injector is also called as Power over Ethernet mid-span devices. 16-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 16x RJ45 PoE ports for these 16-Port PoE injectors. This mid-span have 16x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

16-Port PoE Injector Technical Indexes

Parameter	Specifications
Features	Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45
	Data Input Interface 16RJ-45 10/100Base-TX/ Data Input Interface 16RJ-45 10/100/1000Base-TX
	Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	1615.4W Max IEEE802.3af 1630W Max IEEE802.3at
Wiring	Data provide over pairs 1/2(+) and 3/6(-)
	Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES

16-Port PoE Injector Ordering Information

Model	Decription
LNK-POE216	16-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE216AT	16-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE316	16-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE316AT	16-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W

16-Port PoE Injector 0
