60M 1080P HDMI KVM Extender with Loop-out

Name: 60M 1080P HDMI KVM Extender with Loop-out
Brand: E-link China Technology Co.,LTD
SKU: LNK-HDE-60KVM
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC, ISO9001

Nomor model: LNK-HDE-60KVM

Dokumen: E-link 60M 1080P HDMI KVM E....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 PCS

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      1080P HDMI KVM Extender, 60M KVM Extender, HDMI KVM Extender


Operating Temperature::	-5℃ ~ +70℃	Power supply:	DC 12V
Size(L-W-H):	828517mm	Garansi:	Garansi gratis 1 tahun
Jarak transmisi UTP:	Cat6 Max: 60m	Resolusi:	Max: 1920x1080@60Hz (kompatibel-ke belakang)

Operating Temperature::	-5℃ ~ +70℃
Power supply:	DC 12V
Size(L-W-H):	828517mm
Garansi:	Garansi gratis 1 tahun
Jarak transmisi UTP:	Cat6 Max: 60m
Resolusi:	Max: 1920x1080@60Hz (kompatibel-ke belakang)

Deskripsi

60M 1080P HDMI KVM Extender with Loop-out

Product Advantages

· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;

· Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;

· Support video resolution up to 1920*1080@60Hz, 3D signals;

· Support keyboard and mouse remoter control;

· Support local HDMI loop-out;

· Build-in EDID function, can match many kinds display device;

· Support POC unilateral power supply, need 1pc 12V power to TX

· Compliance with HDMI 1.3 and HDCP 1.3 standard;

Overview

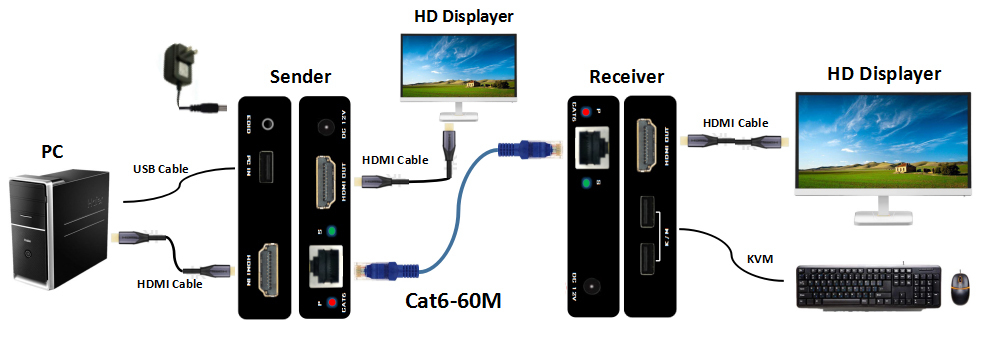

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the receiver

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.3, HDCP 1.3
	Maximum Pixel Clock	165MHz
	Max Data Rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz(backward-compatible)
	Connector	HDMI-A
	Impedance	100Ω
USB	Interface	PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional)
USB	USB Signal	HID Signal
UTP	Interface	RJ45
UTP	Transmission Distance	CAT6 Max: 60m
Other	Power Supply	DC 12V
	Power Dissipation	Max: 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	828517mm
	The warranty	1 Year Free Warranty

Ordering Information

Part No	Description of product
LNK-HDE-60KVM	60M 1080P HDMI KVM Extender With Loop-out
