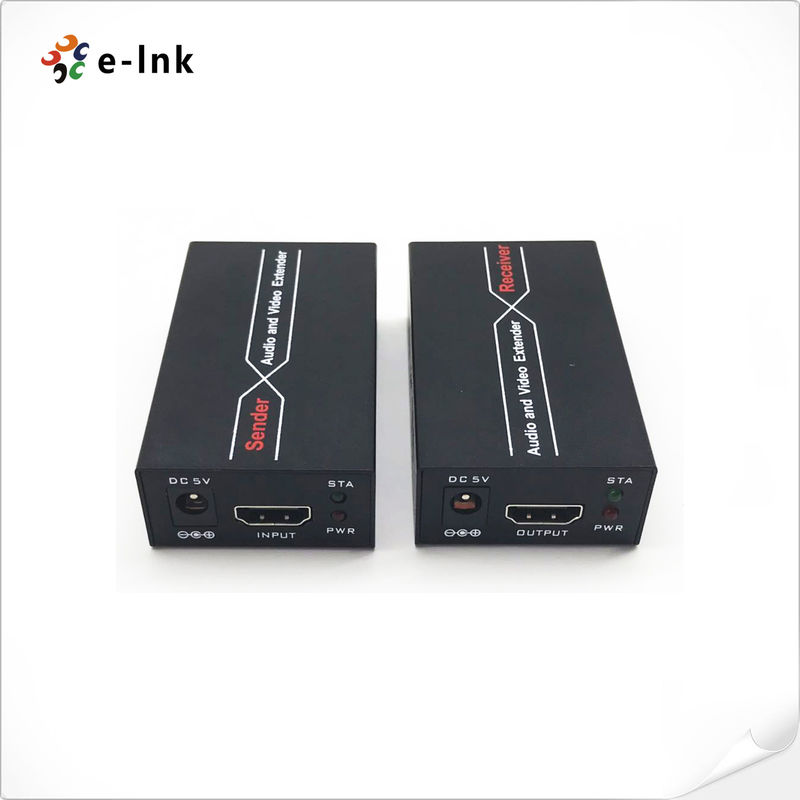

60M 1080P@60Hz HDMI Extender over cat6 with POC Function

Name: 60M 1080P@60Hz HDMI Extender over cat6 with POC Function
Brand: E-link China Technology Co.,LTD
SKU: LNK-HDE-60
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC, ISO9001

Nomor model: LNK-HDE-60

Dokumen: E-link 60M HDMI Extender ov....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 PCS

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      cat6 HDMI Extender, POC Function HDMI Extender, 1080P@60Hz HDMI Extender


Operating Temperature::	-5℃ ~ +70℃	Power supply:	DC 12V
Size(L-W-H):	794323mm	Garansi:	Garansi gratis 1 tahun
Disipasi kekuatan:	MAKSIMAL 3W	Laju data maksimum:	6,75Gbps

Operating Temperature::	-5℃ ~ +70℃
Power supply:	DC 12V
Size(L-W-H):	794323mm
Garansi:	Garansi gratis 1 tahun
Disipasi kekuatan:	MAKSIMAL 3W
Laju data maksimum:	6,75Gbps

Deskripsi

60M 1080P@60Hz HDMI Extender over cat6 with POC Function

Product Advantages

· Uncompressed and zero latency

· Auto adjustment to match the cable length

· The highest resolutions supported is up to 1080P@60Hz

· Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m

· Support EDID pass-through for smart match between the source device and display device

· Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable

Overview

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.3
	Maximum pixel clock	165MHz Digital
	Maximum data rate	6.75Gbps
	Resolution	3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz,
HDMI	Impedance	100Ω
	Connector	HDMI-A
	HDMI cable	Less than 5m at 1080p@60hz
RJ45	Interface	RJ45
	Transmission distance	CAT6/7--- 60m at 1080p@60hz
	Network cable	Low resistance and consumption oxygen-free copper core (CAT6,CAT6A,CAT7)-UTP
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	794323mm
	The warranty	1 year free warranty

Ordering Information

Part No	Description of product
LNK-HDE-60	60M 1080P@60Hz HDMI Extender over cat6 with POC Function
