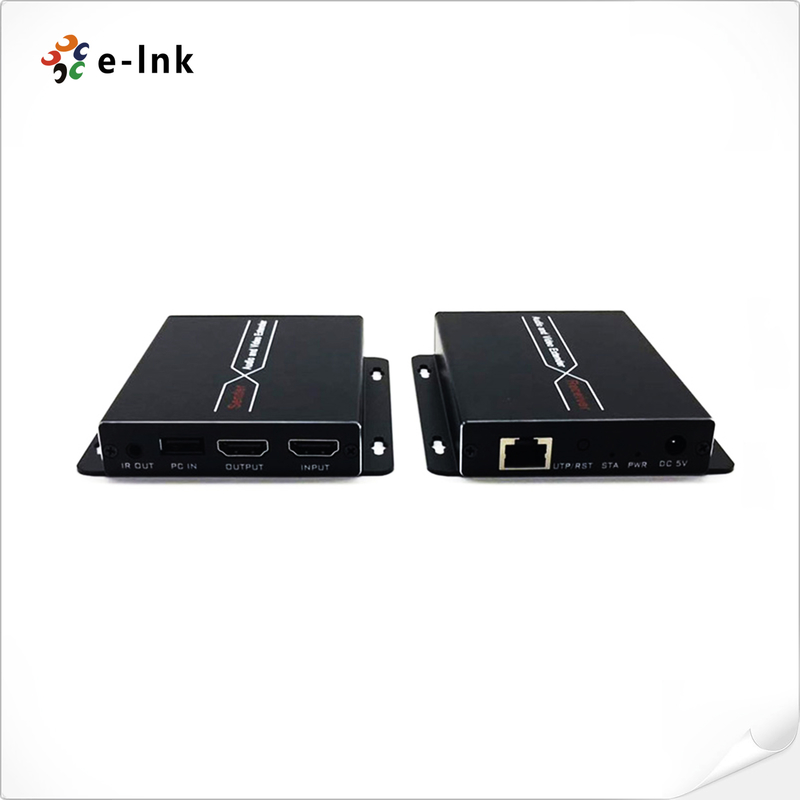

120M 1080P@60Hz HDMI KVM Extender Over TCP/IP

Name: 120M 1080P@60Hz HDMI KVM Extender Over TCP/IP
Brand: E-link China Technology Co.,LTD
SKU: LNK-HDE-120KVM
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC, ISO9001

Nomor model: LNK-HDE-120KVM

Dokumen: E-link 120M 1080P HDMI KVM ....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 PCS

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      1080P HDMI KVM Extender, 120M HDMI KVM Extender, TCP/IP HDMI KVM Extender


Suhu Operasi::	-5 ℃ ~ +70 ℃	Catu daya:	Adaptor Daya: DC 5V
Ukuran (L-W-H):	10097.517mm	Garansi:	Garansi gratis 1 tahun
Disipasi kekuatan:	Max 4W	Laju data maksimum:	6,75Gbps

Suhu Operasi::	-5 ℃ ~ +70 ℃
Catu daya:	Adaptor Daya: DC 5V
Ukuran (L-W-H):	10097.517mm
Garansi:	Garansi gratis 1 tahun
Disipasi kekuatan:	Max 4W
Laju data maksimum:	6,75Gbps

Deskripsi

120M 1080P@60Hz HDMI KVM Extender Over TCP/IP

Product Advantages

· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference; Wall-mounted type is more convenient.

· Distance up to 120m over UTP CAT5E/6 cable.

· Video resolution max up to 1920*1080@60Hz.

· Support keyboard and mouse control .

· Have a local HDMI loop-out ;

· Support IR(38khz) signal pass back transmission .

· HDMI 1.3 and HDCP 1.2 standard.

· High compatibility, can auto-match source and display device.

· Built-in automatic adjustment system, make the image smooth, clear and stable.

Overview

This HDMI KVM Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. It supports keyboard & mouse remote control and local loop-out. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz(backward-compatible)
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
USB	Interface	PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional)
USB	USB Signal	HID Signal
Ethernet	Interface	RJ45(568B)
Ethernet	Transmission distance	UTP CAT5e/---120m
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	10097.517mm
	The warranty	1 year free warranty

Ordering Information

Part No	Description of product
LNK-HDE-120KVM	120M 1080P@60Hz HDMI KVM Extender Over TCP/IP
