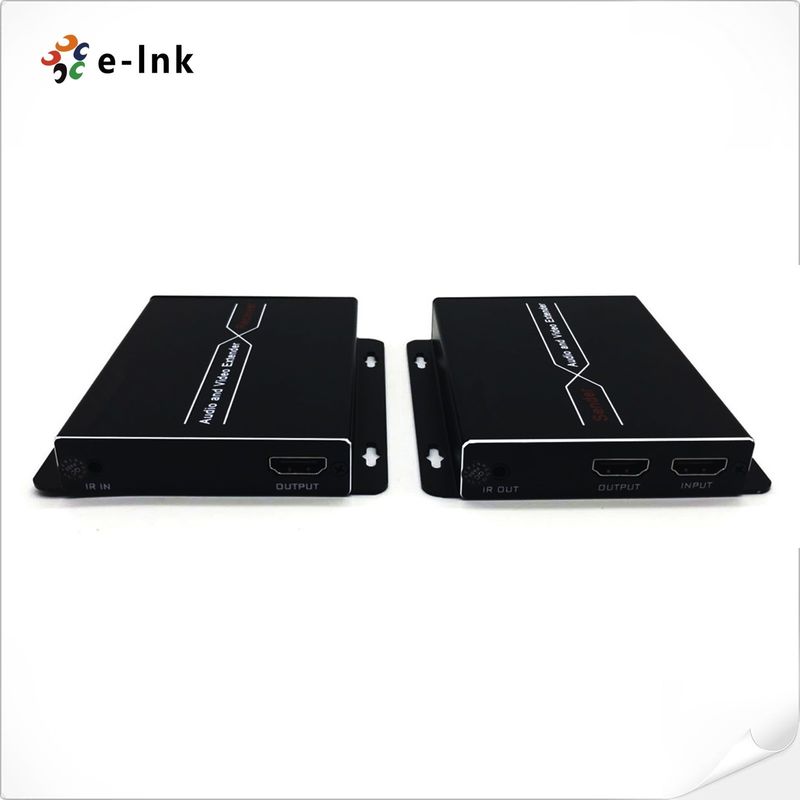

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m)

Name: HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m)
Brand: E-link China Technology Co.,LTD
SKU: LNK-HDE-120
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC, ISO9001

Nomor model: LNK-HDE-120

Dokumen: E-link LNK-HDE-120 HDMI Ext....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 PCS

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      HDMI Over CAT5/CAT6 Extender, 395 ft HDMI Over CAT5 Extender


Suhu Operasi::	-5 ℃ ~ +70 ℃	Power supply:	The power adapter: DC 5V
The warranty:	1 Year Free Warranty	Disipasi kekuatan:	Max 4W
Dimensi:	10097.517mm	Jarak Transmisi:	UTP cat5e --- 120m

Suhu Operasi::	-5 ℃ ~ +70 ℃
Power supply:	The power adapter: DC 5V
The warranty:	1 Year Free Warranty
Disipasi kekuatan:	Max 4W
Dimensi:	10097.517mm
Jarak Transmisi:	UTP cat5e --- 120m

Deskripsi

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m)

120M 1080P@60Hz HDMI KVM Extender Over TCP/IP

Product Advantages

► Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type

► Uncompressed and zero latency

► Auto adjustment to match the cable length

► The highest resolutions supported is up to 1080P@60Hz

► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m

► Support EDID pass-through

► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.

Overview

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
Ethernet	Interface	RJ45(568B)
Ethernet	Transmission distance	UTP CAT5e---120m
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	10097.517mm
	The warranty	1 year free warranty

Ordering Information

Part No	Description of product
LNK-HDE-120	HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs
