3G-SDI to HDMI Converter

Name: 3G-SDI to HDMI Converter
Brand: E-link China Technology Co.,LTD
SKU: SDI ke HDMI Converter
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC, ISO9001

Nomor model: SDI ke HDMI Converter

Dokumen: E-link 3G-SDI to HDMI Conve....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 PCS

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram,Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                              3G-SDI to HDMI Converter, HDMI to 3G-SDI Converter, 3G-SDI HDMI Converter


Suhu Operasi::	-40 ℃ hingga +70 ℃	Catu daya:	DC5V/1A
Disipasi kekuatan:	Max 4W	Dimensi:	98,5x85x31mm

Suhu Operasi::	-40 ℃ hingga +70 ℃
Catu daya:	DC5V/1A
Disipasi kekuatan:	Max 4W
Dimensi:	98,5x85x31mm

Deskripsi

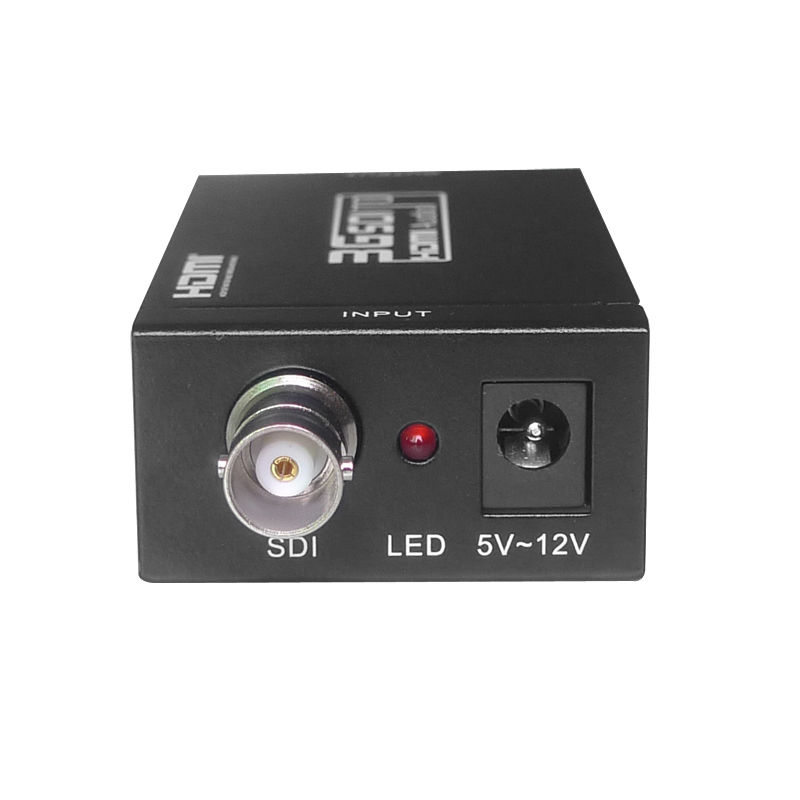

3G-SDI to HDMI Converter

3G-SDI to HDMI Converter

Product Advantages

1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C

3. Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio

4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

5. Connect with other units to extend your signal over long distances

Overview

The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

Technical Indexes

Parameter	Specifications
Input Port	1 x BNC (SDI/HD-SDI/3G-SDI)
Output Port	1 x HDMI
SMPTE Standard	425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates	2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution	480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30
HDMI input/output connect	HDMI type A 19Pin
Link Connector	BNC Shielded
Power Adapter	DC5V/1A
Operating temperature range	-40℃ to +70℃
Operating humidity range	5 to 90% RH (no condensation)
Shippingweight	0.15 KGS
Dimensions( L x W x H)	98.5 x 85 x 31mm
