1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output

Name: 1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output
Brand: E-link China Technology Co.,LTD
SKU: Seri LNK-3G-1V4H
Price: 594.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: ISO9001, CE, ROHS, FCC

Nomor model: Seri LNK-3G-1V4H

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pasang

Harga: negotiate

Packaging Details: SDI Fiber Extender Standard Carton Packaging

Delivery Time: 3-5 working days

Syarat-syarat pembayaran: T/T, Serikat Barat, MoneyGram, Paypal

Menyediakan kemampuan: 1000/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      3G-SDI Fiber Extender, 1Ch SDI Fiber Extender, 4Ch HDMI Output SDI Fiber Extender


Jarak Transmisi:	550m-20Km	Input Video/Keluar Tegangan Tegangan:	Tipikal:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Connector:	Female HDMI type A	Casing:	Aluminum Case
Suhu penyimpanan:	-40℃～+80℃	Dimensions (LxWxH):	Transmitter: 72 x 42 x 22 mm Receiver: 164 x 72 x 38 mm

Jarak Transmisi:	550m-20Km
Input Video/Keluar Tegangan Tegangan:	Tipikal:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Connector:	Female HDMI type A
Casing:	Aluminum Case
Suhu penyimpanan:	-40℃～+80℃
Dimensions (LxWxH):	Transmitter: 72 x 42 x 22 mm Receiver: 164 x 72 x 38 mm

Deskripsi

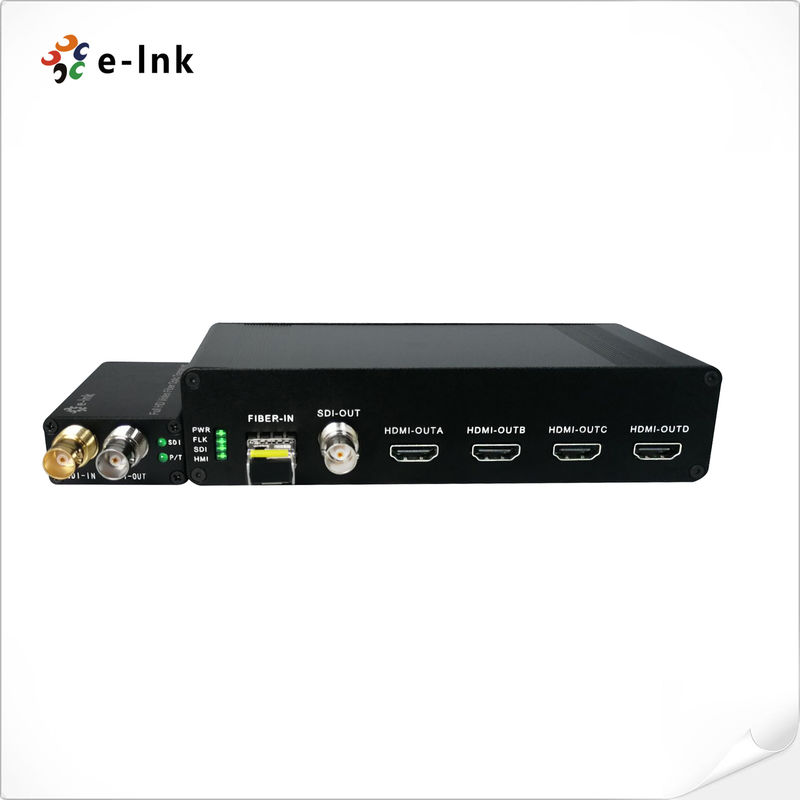

1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output

1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output

Model: LNK-3G-1V4H Series

Overview

LNK-3G-1V4H Series 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video (audio embedded) transmitted via fiber

optical cable, and monitor the signal locally over a 3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes

one transmitter with loop out and one receiver with 1Ch 3G-SDI and 4Ch HDMI Output.

Features

► Transmitter with 1Ch 3G-SDI input and loop out

► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with 3G-SDI camera systems

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

►industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video - SDI
Video interface	BNC
Video input/output impedance	75Ω
Video input/out put voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Video SDI standard	270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Video - HDMI
Connector	Female HDMI type A
Impedance	100Ω
Resolution	Up to 1920*1200@60Hz
HDMI Cable Range	<5Meter
Electrical
Power adaptor	DC 5V
Power consumption	<5W
LED Indicator
PWR	Power Supply
FLK	Fiber Link
SDI	SDI Video
HMI	HDMI Video
Mechanical
Dimensions (LxWxH)	Transmitter: 72 x 42 x 22 mm
Dimensions (LxWxH)	Receiver: 164 x 72 x 38 mm
Weight	1.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Application

1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output 0

Ordering information

Model	Description
LNK-3G-1V4H	3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs
