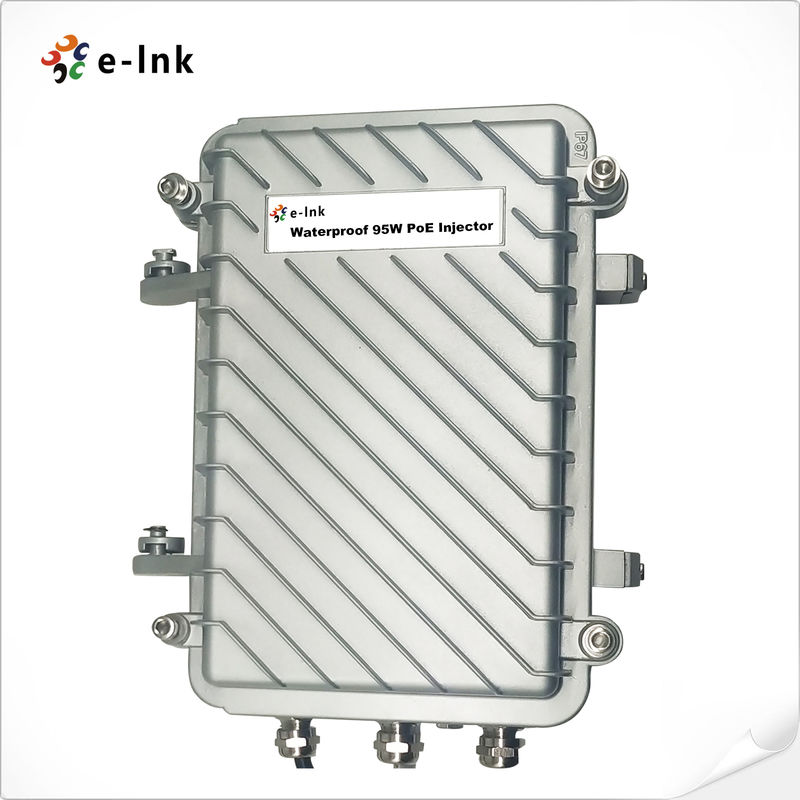

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Name: Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP901
Price: 57.00 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Sertifikasi: ROHS,FCC,CE

Nomor model: LNK-WP901

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Paket Ekspor Standar Injektor

Waktu pengiriman: 3-12 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan: 1000 PC/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      Waterproof Industrial PoE Injector, 95W Industrial PoE Injector, 6KV Surge Protection PoE Injector


Kata kunci:	Injektor PoE	Suhu operasi:	-40 ℃ hingga 80 ℃
Dimensi (W X D X H):	260mm x 210mm x 80mm	Berat:	1.5kg
Kelembaban:	10% hingga 90%, tanpa kondensasi	Daya Input:	48~57VDC

Kata kunci:	Injektor PoE
Suhu operasi:	-40 ℃ hingga 80 ℃
Dimensi (W X D X H):	260mm x 210mm x 80mm
Berat:	1.5kg
Kelembaban:	10% hingga 90%, tanpa kondensasi
Daya Input:	48~57VDC

Deskripsi

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Advantages

► Protection level: IP67

► 6KV(10/700us) surge protection on LAN, PoE ports

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Supports Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Overview

LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250
Input & Output	Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
AC Surge Protection	Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Ordering Information

Model	Description
LNK-WP901	Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection
