1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

Name: 1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
Brand: E-link China Technology Co.,LTD
SKU: Seri LNK-HDMI
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: ROHS,FCC,CE

Nomor model: Seri LNK-HDMI

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Paket Ekspor Standar Extender

Waktu pengiriman: 3-12 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan: 1000 PC/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      External Audio HDMI Fiber Optic Extender, 4 Ch HDMI Fiber Optic Extender


Kata kunci:	Extender serat optik	Suhu operasi:	-5°C hingga +75°C
Dimensi (W X D X H):	109.515229.3mm (PanjangLebarTinggi)	Tegangan input:	DC 12V, di dalam + di luar -
Kelembaban:	Operasi: 5% ~ 90%	Panjang gelombang serat:	3Gbps

Kata kunci:	Extender serat optik
Suhu operasi:	-5°C hingga +75°C
Dimensi (W X D X H):	109.515229.3mm (PanjangLebarTinggi)
Tegangan input:	DC 12V, di dalam + di luar -
Kelembaban:	Operasi: 5% ~ 90%
Panjang gelombang serat:	3Gbps

Deskripsi

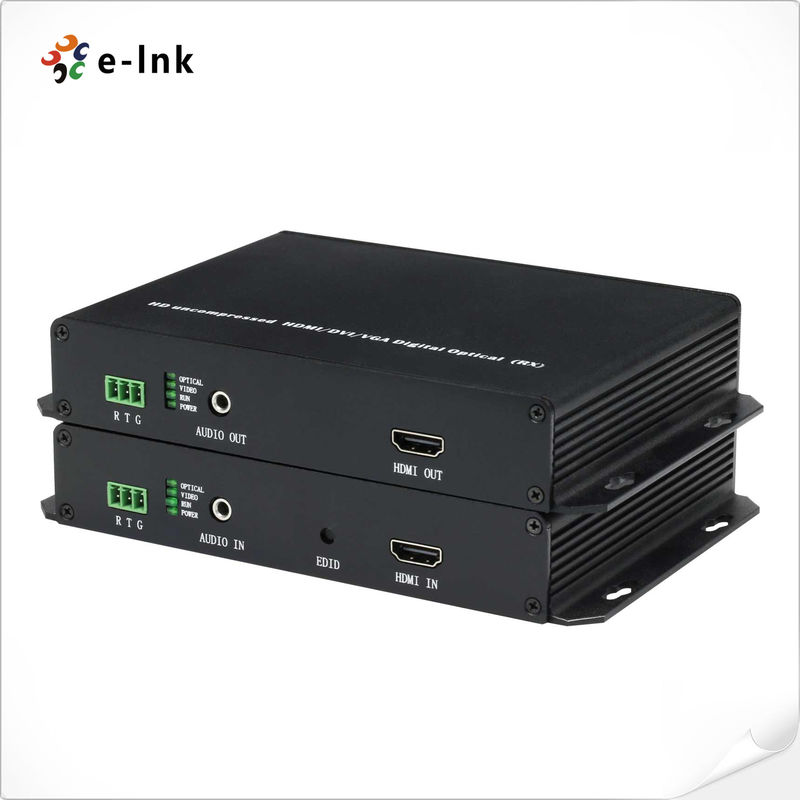

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender Advantages

► Full digital, Uncompressed HD optical fiber transmission

► Support Full HD 1920*1200@60Hz

► The attenuation of optical module SFP low to -3db

► 1 channel analog audio(3.5mm)

► Support HDMI 1.3b Protocal

► Support KVM

► Automatic identification and configure display mode

► Automatic equalization inside, stable and clear graphics.

► ESD protection circuit inside, to ensure the ESD damage.

► Easily to installation, plug and play, no need to set up

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender Overview

The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender Technical Indexes

Temperature	-5°C to +75°C
Humidity	5 to 90 % RH (no condensation)
The signal of Input and output	HDMI
Protocal	HDMI1.3b,HDCP1.2
Pixel band width	300MHz
Video format	800x600P60 1024x768P60 1280x800P60 1280x1024P60 1360x768P60 1366x768P60 1400x1050P60 1440x900P60 1600x900P60 1600x1200P60 1680x1050P60 1280x720P50 1280x720P60 1920x1080P24 1920x1080P25 1920x1080P30 1920x1080P50 1920x1080P60 1920x1080I60 1920x1080I50 1920x1200P60
The signa of Audio input and output	3.5MM Audio
Audio format	44.1K,48K,96K,176K,192K
RS232 port	3 ports industrial terminal
RS232 Baud rate	Support 115200 and all below
RS 232 Data bits	8 bits
KVM receiver port	A USB port
KVM transmitter port	B USB port
Fiber port	LC
Fiber module	SFP single mode
Fiber wavelength	1550/1310nm
Fiber band width	3Gbps
The Maximum transmission distance of HDMI and Audio	10KM/20KM/40KM/60KM
Input voltage	DC 12V,inside + outside -
Power consumption	HDMI receiver 4W HDMI transmitter 4W
Device size	109.515229.3mm(lengthwidthheight)
Packing box size	32827390mm(lengthwidthheight)
Weight	1CH 3KG/Pair 2CH 5KG/Pair 4Ch 6KG/Pair 8CH 10KG/Pair

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender Ordering Information

Item	Description
Item	Description
LNK-HDMI-100	HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-200	HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-400	HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs
LNK-HDMI-800	HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender 2

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender 3

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender 4
