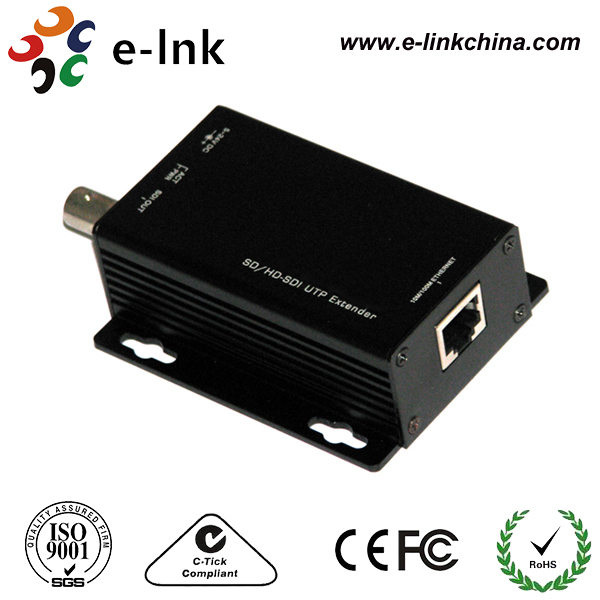

HD-SDI Video Extender over CAT5 / 6 Kit

Name: HD-SDI Video Extender over CAT5 / 6 Kit
Brand: E-link China Technology Co.,LTD
SKU: LNK-DTS050-T
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: CE, RoHS, FCC, ISO9001

Nomor model: LNK-DTS050-T

Dokumen: E-link HD-SDI Video Extende....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      HD-SDI Video Extender over CAT5, HD-SDI Video Extender Kit


Suhu Operasi::	-10°C ~ 60°C / 14°F ~ 140°F	Catu daya:	DC12V/1A
Konsumsi daya:	2.5W (TX dan RX)	Dimensi:	98x65x28mm / 3,85x2,55x1,1 inci
Standar Didukung:	SMPTE 259M (270Mb/dtk), SMPTE 292M	Kecepatan:	270Mb/s, 1,485Gb/s (pemilihan otomatis)

Suhu Operasi::	-10°C ~ 60°C / 14°F ~ 140°F
Catu daya:	DC12V/1A
Konsumsi daya:	2.5W (TX dan RX)
Dimensi:	98x65x28mm / 3,85x2,55x1,1 inci
Standar Didukung:	SMPTE 259M (270Mb/dtk), SMPTE 292M
Kecepatan:	270Mb/s, 1,485Gb/s (pemilihan otomatis)

Deskripsi

HD-SDI Video Extender over CAT5 / 6 Kit

Product Advantages

· SDI Standard: HD-SDI, SD-SDI

· Up to 50m / 160ft via CAT5e cable

· Up to 60m / 200ft via CAT6 cable

· Supports SDI-SMPTE 259M-C (270Mbps);

· HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)

· LED diagnostics: sync, SDI auto-detection

· 5V~12V DC

Overview

LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.

Technical Indexes

Model	LNK-DTS050
Type	Transmitter	Receiver
Standard Supported	SMPTE 259M (270Mb/s), SMPTE 292M
Speed	270Mb/s, 1.485Gb/s (automatic selection)
Support Input Format	SD: 525i @ 59.94Hz, 625i @ 50Hz
	HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
	720p @ 50Hz / 59.94Hz / 60Hz
	1080i @ 50Hz / 59.94Hz / 60Hz
	1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
	@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz
Indicators	Power on (on both end)
	Sync detection (on both end)
	Link between the two units working (on both end)
Connectors	1x BNC 75 ohm female
	1x RJ45 of CAT5e/6 unshielded or shielded twisted pair
	1x power plug, 2.1mm
Maximum Distance	All resolutions
	CAT5 UTP/STP: 50m / 160ft
	CAT6 UTP/STP: 60m / 200ft
Power Supply	DC12V/1A
Power Consumption	2.5W (Tx and Rx)
Operating Temperature	-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature	-30°C ~ 70°C / -22°F ~158°F
*Dimensions (LWH)*	98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches

Ordering Information

Part No	Description of product
LNK-DTS050-T	SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter;
LNK-DTS050-R	SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver
