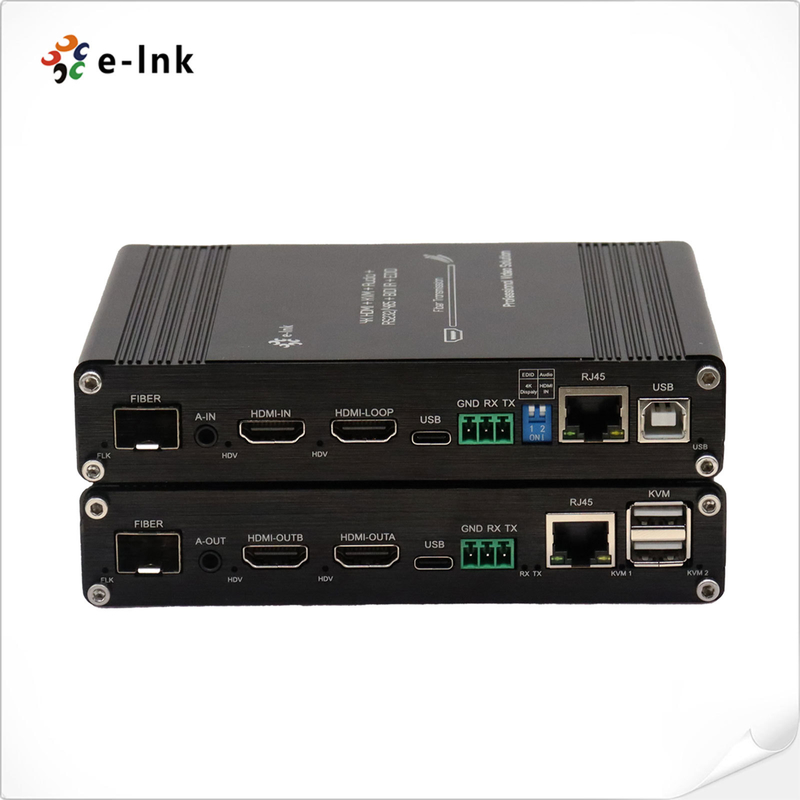

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Name: Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-4KH-1D1U1E1A1R
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Nomor model: LNK-4KH-1D1U1E1A1R

Dokumen: E-link LNK-4KH-1D1U1E1A1R 4....1.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Kemasan Karton

Waktu pengiriman: 3-12 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan: 1000 PC/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      4K 60Hz KVM Fiber Extender, HDMI KVM Fiber Extender, Multi-functional KVM Fiber Extender


Catu daya:	DC 12V/1A	Disipasi kekuatan:	Maks 10W
Suhu:	Operasi: -25 ℃ ~ +55 ℃ Penyimpanan: -40 ℃ ~ +85 ℃	Kelembaban:	20% ~ 90%
Berat:	1kg	Dimensi (PxLxT):	14811528mm

Catu daya:	DC 12V/1A
Disipasi kekuatan:	Maks 10W
Suhu:	Operasi: -25 ℃ ~ +55 ℃ Penyimpanan: -40 ℃ ~ +85 ℃
Kelembaban:	20% ~ 90%
Berat:	1kg
Dimensi (PxLxT):	14811528mm

Deskripsi

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender

Advantages

► Support HDMI video resolution up to 4096*2160P@60Hz

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards

► Support HDMI video loop out

► Support KVM

► Support RS232 or RS485

► Support 10/100M TCP/IP

► Support Bidi IR

► Support DIP Switch with Audio Separation and EDID function

Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Transmitter Interfaces	Standards	1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B
Receiver Interfaces	Standards	2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A
Video Resolution	HDMI	SMPTE:720p\|1080p12160p VESA:800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x10801920x1200\|2048x1152\|2560x1600\| 3840x1080\|3840x2160\|4096x2160
	Refresh Rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	HDMI	1.3,1.4,2.0
	DVI	1.0
Audio	Interface	3.5mm Audio Interface
	Signal type	Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio
KVM	Interface	TX: 1 x USB-B RX: 2 x USB-A
	latency	Minimum latency
RS232/RS485	Interface	Industrial terminal
	Signal direction	RS232 default, RS485 optional
	Baud rate	600~115200bps, 8bit, 1 stop bit, no check.
	Data bits	8

Order Information

Model	Description
LNK-4KH-1D1U1E1A1R	Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.


Multi-functional 4K 60Hz HDMI KVM Fiber Extender 0

Application

Multi-functional 4K 60Hz HDMI KVM Fiber Extender 1
