Wall Mount Passive POE Injector

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: CE, FCC

Nomor model: LNK-POE200W

Dokumen: E-link LNK-PSW Series PoE I....0.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Industri PoE Beralih Kemasan Karton Standar

Waktu pengiriman: 7-10 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik
Hubungi Sekarang
Spesifikasi
Menyoroti:

Wall Mount Passive POE Injector

,

Passive POE Injector

,

Wall Mount POE Injector

Suhu Operasi::
0 hingga +40 ° C (32 ° F hingga 104 ° F)
Ukuran (PxLxT)::
84 × 47 × 31mm
Pengadilan:
Kasing logam
Berat:
120g
Kelembaban:
Maks. 95% RH (non-kondensasi)
daya output:
24W/48W Opsional
Suhu Operasi::
0 hingga +40 ° C (32 ° F hingga 104 ° F)
Ukuran (PxLxT)::
84 × 47 × 31mm
Pengadilan:
Kasing logam
Berat:
120g
Kelembaban:
Maks. 95% RH (non-kondensasi)
daya output:
24W/48W Opsional
Deskripsi

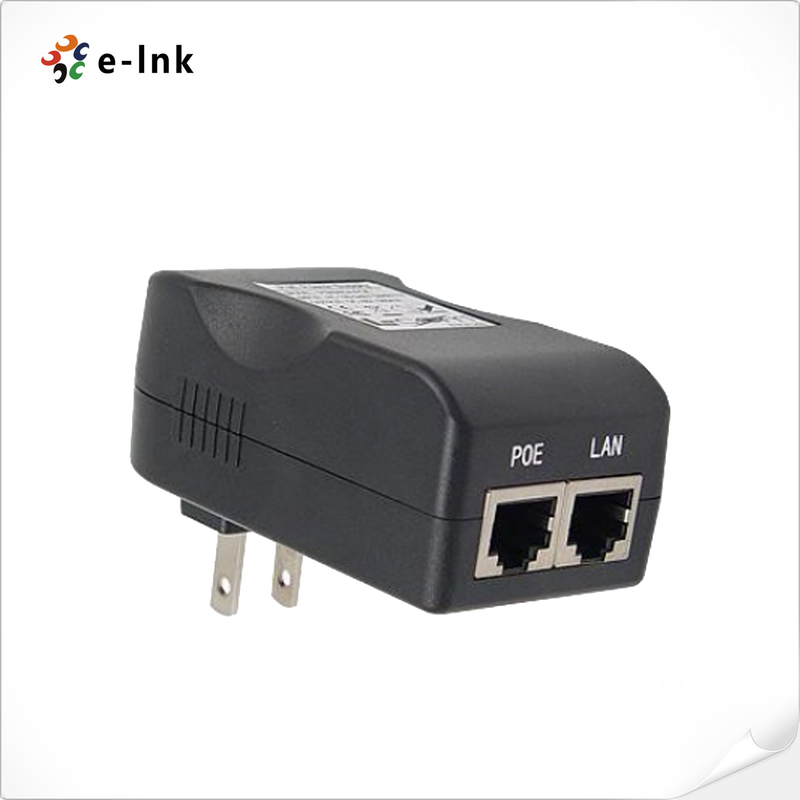

Wall Mount Passive POE Injector

95W SFP PoE Injector

Product Advantages

► Compact wall mount design

► No additional power cables required

► Built in protection circuits

► Supports 10/100M or 10/100/1000M LAN environment

► Plug & Play

► No configuration required

► Reduced Installation cost

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Nonstandard Ethernet Terminals

Overview

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.


Technical Indexes

Parameter

Specifications

Data Rate

10/100Mbps

10/100/1000Mbps

Connectors

2xRJ45 Jacks

Input Power

90-240V AC ,50-60Hz

Output Voltage

12V/24V/48V/52V/56VDC optional

Output Current

0.5A/0.8A/0.9A/1.0A/2.0A Optional

Output Power

24W/48W optional

Wiring

Data provide over pairs 1/2(+) and 3/6(-)

• Power over spare pairs 4/5(+) and 7/8(-)

LED Display

YES

Over Load Protection

115%-150% of Rated Power

Operating Temperature

0 to +40°C (32°F to 104°F)

Operating Humidity

Max. 95% RH(non-condensing)

Dimension (LxWxH)

84×47×31mm

Weight

120g



Ordering Information

Model

Decription

LNK-POE200W

Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W

LNK-POE200WT

Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W

LNK-POE300W

Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W

LNK-POE300WT

Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W
