1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender

Name: 1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-HD-FE
Price: 134.00 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Model Number: LNK-HD-FE

Dokumen: E-link LNK-HD-FE HDMI Fiber...d).pdf

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1 pcs

Harga: Dapat dinegosiasikan

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      10/100M Ethernet Fiber Extender, 1-Ch Ethernet Fiber Extender, 1-Ch HDMI Fiber Extender


Operating Temperature:	-5°C to 35°C(23°F to 95°F)	Storage Temperature:	-10°C to 70°C(14°F to 158°F)
Operating Humidity:	10 to 90%RH (No Condensation)	Storage Humidity:	5 to 90%RH (No Condensation)
Fiber Module:	1310nm Single Mode Transmitter & Receiver	Fiber Connector:	SC Duplex Connector

Operating Temperature:	-5°C to 35°C(23°F to 95°F)
Storage Temperature:	-10°C to 70°C(14°F to 158°F)
Operating Humidity:	10 to 90%RH (No Condensation)
Storage Humidity:	5 to 90%RH (No Condensation)
Fiber Module:	1310nm Single Mode Transmitter & Receiver
Fiber Connector:	SC Duplex Connector

Deskripsi

1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender

Advantages

► Automatically adapt range of input signal sampling frequency (32～100KHz)

► Provides high-resolution image quality.

► Plug-and-play operation - no programming or setup required.

► Extends 1080p HDMI signals up to 20km over a optic cable.

► Optical fiber use rules out any RF interference.

► Ethernet Pass-Through.

► Built in IR remote control.

Overview

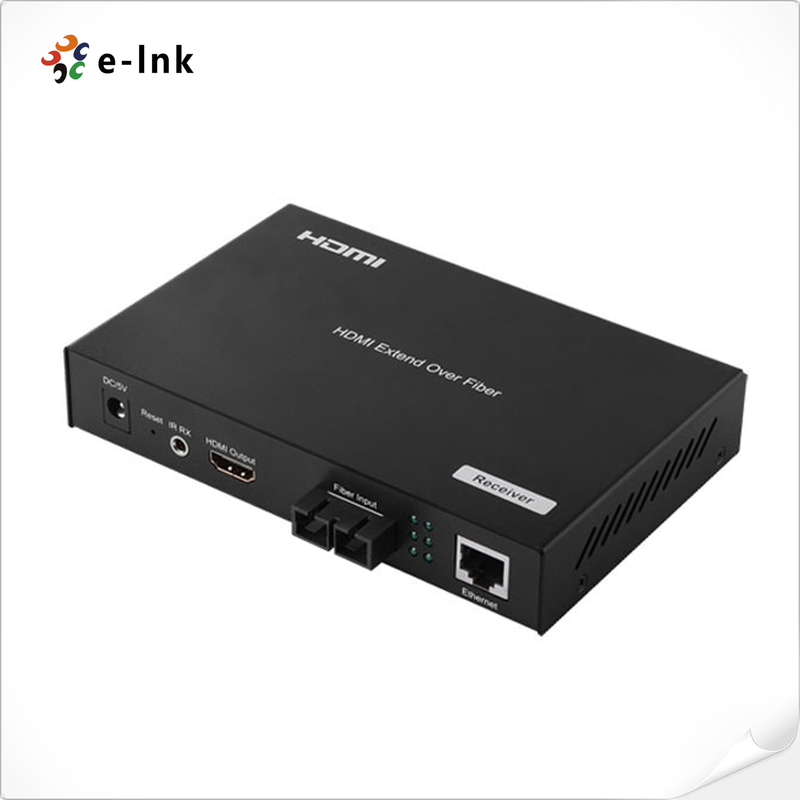

LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extends 1080P HDMI Signal up to 20km over a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.

Technical Indexes

Operating Temperature	-5°C to 35°C(23°F to 95°F)
Storage Temperature	-10°C to 70°C(14°F to 158°F)
Operating Humidity	10 to 90%RH (No Condensation)
Storage Humidity	5 to 90%RH (No Condensation)
Fiber Module	1310nm Single Mode Transmitter & Receiver
Fiber Connector	SC Duplex Connector
Transmission Distance	1080P 36bit @60Hz 20Km(Maximum)
Power consumption	TX:8watts; RX:8watts((Maximum)
IR wavelength &frequency	Wavelength:940nm,frequency 38kHz
Dimension (L×W×H)	TX & RX: 154x99.5x27mm
Net Weight	Transmitter:410g, Receiver:410g,
LED Indicators	Power, Link/Act and Speed


Application

1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender 1
