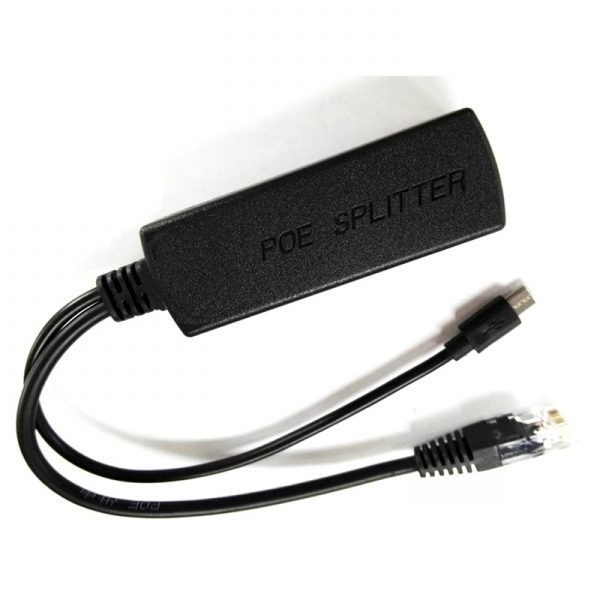

10/100/1000M 5V 2A PoE Splitter with Micro USB port

Name: 10/100/1000M 5V 2A PoE Splitter with Micro USB port
Brand: E-link China Technology Co.,LTD
SKU: LNK-SP5VG-USB
Price: 42.90 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Sertifikasi: CE, FCC, RoHS

Model Number: LNK-SP5VG-USB

Dokumen: E-link 1000M 5V2A PoE Split....0.pdf

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1pcs

Harga: Dapat dinegosiasikan

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Product Size:	83 x 28 x 22mm	Weight:	59g
Operating temperature:	0°C~55°C	LED Indicator:	POE input indicator; PD output indicator
CasingCasingCasingCasingCasing:	Aluminum Case	Radiation:	CE mark,commercial,FCC Part 15 Class B，RoHS

Product Size:	83 x 28 x 22mm
Weight:	59g
Operating temperature:	0°C~55°C
LED Indicator:	POE input indicator; PD output indicator
CasingCasingCasingCasingCasing:	Aluminum Case
Radiation:	CE mark,commercial,FCC Part 15 Class B，RoHS

Deskripsi

10/100/1000M 5V 2A PoE Splitter with Micro USB port

Product Advantages

► IP67-rated aluminum case

► 3 x 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 48 ~ 57V DC Power Input

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kb jumbo frame support in 1000Mbps full-duplex mode

► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment

Overview

The LNK-SP5VG-USB is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam, Raspberry Pi ,Android, Tablet etc. It can be transmitted power and data signals through the cable transmission. LNK-SP5VG-USB support the use of PSE equipment which meet IEEE802.3af standard, such as POE Switch series and so on.

Technical Indexes

Model	LNK-SP5VG-USB
Standard	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af
Power Pin	1/2(+), 3/6(-); 4/5(+), 7/8(-)
Power Input	44-57V DC
Power Output	5V 2.4A DC
Date Rate	10/100/1000Mbps
Distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-T: cat 5 and above UTP(≤100m)
LED Indicator	POE input indicator; PD output indicator
Environmental	Working Temperature: 0°C~55°C Storage temperature: -20°C~75°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size	83 x 28 x 22mm
Weight	59g

Ordering Information

Model	Description
LNK-SP5VG-USB	10/100/1000M 5V 2.4A POE splitter with Micro USB port
