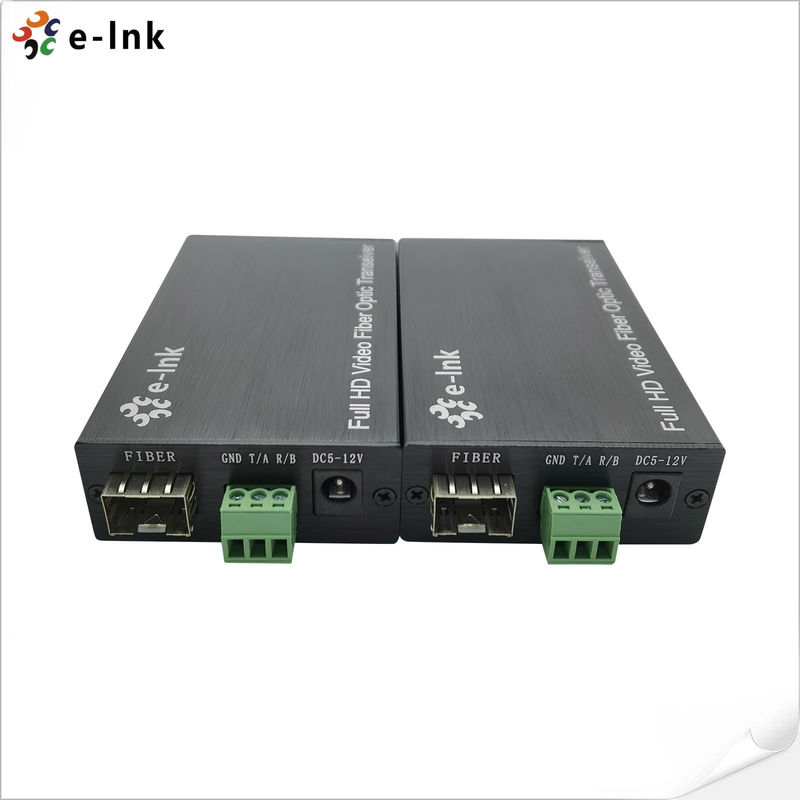

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Name: 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-HF100DA Series
Price: 134.00 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Model Number: LNK-HF100DA Series

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1 pcs

Harga: Dapat dinegosiasikan

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Power supply:	The power adapter: DC 5~12V	Power dissipation:	MAX 4W
Temperature:	Operating: -20℃ ~ +70℃	Humidity:	Operating: 5% ~ 90%
Dimension (LxWxH):	92 x 57 x 23 (mm)	Interface bandwidth:	3Gbps

Power supply:	The power adapter: DC 5~12V
Power dissipation:	MAX 4W
Temperature:	Operating: -20℃ ~ +70℃
Humidity:	Operating: 5% ~ 90%
Dimension (LxWxH):	92 x 57 x 23 (mm)
Interface bandwidth:	3Gbps

Deskripsi

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Advantages

► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ;

► Support external bidirectional stereo audio transmission;

► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;

► Single-port HDMI 1.4b receiver;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

► Support EDID

Overview

The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable, it supports HDMI1.4 mode, it is fully compatible with HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter		Description
Video	Standards	HDMI1.4B 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Compliant	1080P@50/59.95/60Hz,( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female HDMI type A
	Impedance	100Ω
	HDMI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Ouptut
	Receiver	1Ch Input + 1Ch Ouptut
RS232	Interface	3-Pin Terminal Block
RS232	Baud Rate	≤115200bps
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km
IndexOther	Power supply	The power adapter: DC 5~12V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	92 x 57 x 23 (mm)

Ordering Information

Model	Description
LNK-HF100DA	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-HF100DA-20	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs


Application

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 1
