24-ports 10/100/1000M Ethernet Network Surge Protector

Name: 24-ports 10/100/1000M Ethernet Network Surge Protector
Brand: E-link China Technology Co.,LTD
SKU: LNK-SPD2400G
Price: 369.00 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Sertifikasi: ISO9001, CE, FCC, RoHS

Model Number: LNK-SPD2400G

Dokumen: E-link LNK-SPD2400G 24-port....0.pdf

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1pcs

Harga: Dapat dinegosiasikan

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Working Temperature:	-20℃~70℃	Working Humidity:	5%~95 % (no condensation)
MTBF:	＞30000h	Insulation Resistance:	≥0.4MΩ
Bandwidth:	20Hz-20KHz	Insertion Loss:	≤0.2dB

Working Temperature:	-20℃~70℃
Working Humidity:	5%~95 % (no condensation)
MTBF:	＞30000h
Insulation Resistance:	≥0.4MΩ
Bandwidth:	20Hz-20KHz
Insertion Loss:	≤0.2dB

Deskripsi

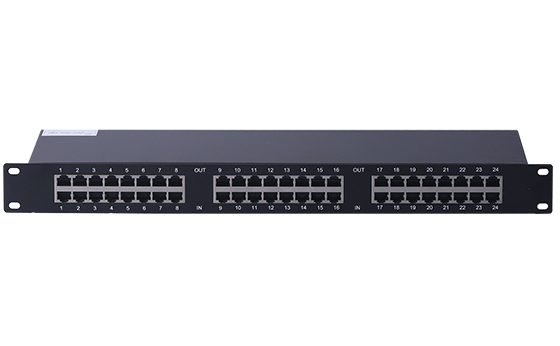

24-ports 10/100/1000M Ethernet Network Surge Protector

24-ports 10/100/1000M Ethernet Network Surge Protector

Product Advantages

► 220VAC Control Line, RJ45 port;

► Multi-level protection circuit, residual depression;

► Four wire protection: 1.2.3.6 line

► High transmission band, fast response, low insertion loss;

► Exquisite appearance, small size, easy to stall;

► Ground through a special process to avoid signal interference.

► It has huge flow capacity, sensitive reaction

► Excellent performance, and low-loss insert

Overview

This product is applicable to the lightning and electric surge protection of the Ethernet signal circuit, control wiring and power circuit of monitor camera. It can combine the above mentioned lightning protection function into one. Its housing adopts integrated iron structure with small volume and ultra low residual pressure output.

Technical Indexes

Item			Specification
Model			LNK-SPD2400G
Ethernet	Continuous Operating Voltage		5V
	Maximum Working Voltage		6V
	Nominal Discharging Current In (8/20us)		2KA
	Maximum Discharging Current Max (8/20us)		3KA
	Limit Voltage Up	1~2	＜20V
	10/700us	3~6	＜20V
	Insulation Resistance		≥0.4MΩ
	Insertion Loss		≤0.2dB
	Transmission Rate		10/100/1000Mbps
	Response Time		≤0.5ns
	Protection Pins		1, 2, 3, 6
	Protection lines		24 Channels
Environmental	Operating Temperature		-20℃~70℃
	Storage Temperature		-20℃~95℃
	Relative Humidity		5% to 95% non-condensing
Stability	MTBF		＞30000h

Ordering information

Model	Description
LNK-SPD2400G	24-ports 10/100/1000M Ethernet Network Surge Protector
