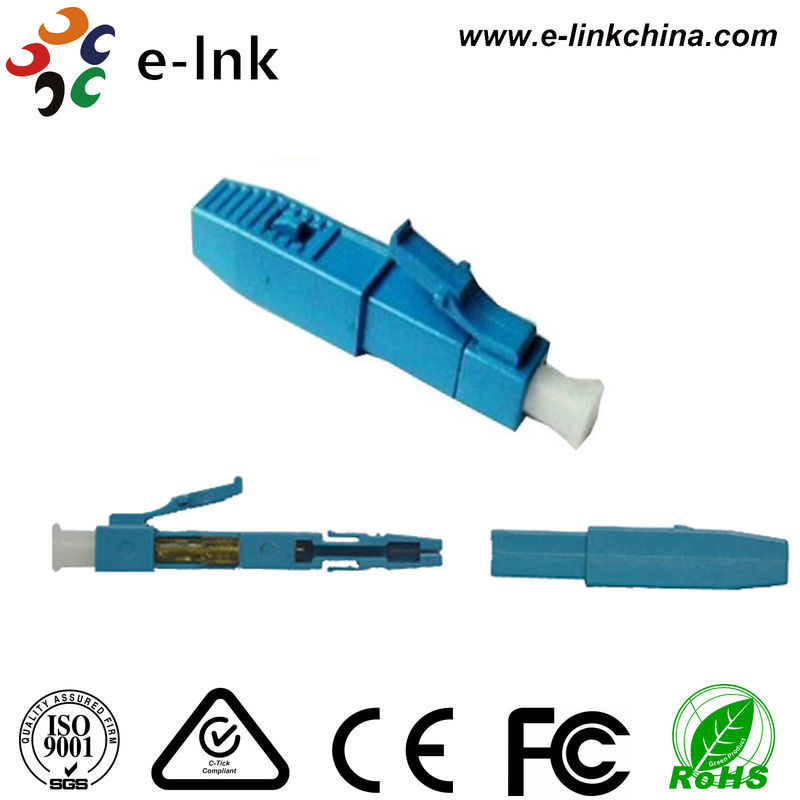

LC/UPC SM Fast Connector

Name: LC/UPC SM Fast Connector
Brand: E-link China Technology Co.,LTD
SKU: LC/UPC SM Fast Connector
Price: 369.00 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Sertifikasi: ISO9001, CE, FCC, RoHS

Model Number: LC/UPC SM Fast Connector

Dokumen: E-link LC SM Fast Connector....0.pdf

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1pcs

Harga: Dapat dinegosiasikan

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Tensile strength:	>50 N	Fastening strength of naked fiber holder:	>10 N
Fastening strength of naked fiber:	>5 N	Return loss:	≥50dB
Insert loss:	≤ 0.3dB（1310nm & 1550nm）	Operation time:	About 120s（no fiber cut）

Tensile strength:	>50 N
Fastening strength of naked fiber holder:	>10 N
Fastening strength of naked fiber:	>5 N
Return loss:	≥50dB
Insert loss:	≤ 0.3dB（1310nm & 1550nm）
Operation time:	About 120s（no fiber cut）

Deskripsi

LC/UPC SM Fast Connector

Product Advantages

l One-piece connector or attenuator

l Inside ferrule with fiber stuff and pre-polishing

l Field installable, quich connection, easy for operation

l No epoxy, no polishing, no adhesive, no electricity required

l High performance and high reliability

l Simply and easy fixed fiber or cable

l Cable Tensile complied with Telcordia GR-326-CORE

Overview

Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.

Technical Indexes

ITEM	Technical Parameters
Applicable for	Drop cable. Indoor cable
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	900μm
Fiber mode	Single mode
Polishing Type	UPC or APC
Operation time	About 120s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≥50dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40～+75℃
On-line tensile strength (20 N)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
