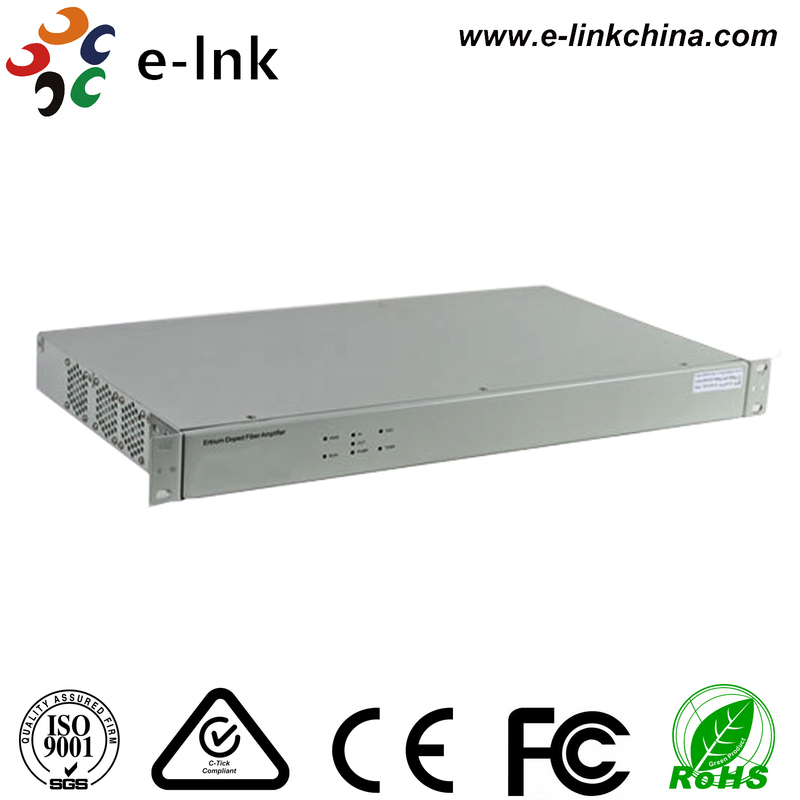

100G Semiconductor Optical Amplifier

Name: 100G Semiconductor Optical Amplifier
Brand: E-link China Technology Co.,LTD
SKU: LNK-100G-SOA1310
Price: 369.00 USD
Availability: InStock

Rincian produk

Place of Origin: China

Nama merek: E-link

Sertifikasi: ISO9001, CE, FCC, RoHS

Model Number: LNK-100G-SOA1310

Dokumen: E-link 100G Semiconductor O....0.pdf

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1pcs

Harga: Dapat dinegosiasikan

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Management:	WEB, SNMP	Size:	WEB, SNMP
Rate:	10Gbps/40Gbps/100Gbps	Control mode:	APC

Management:	WEB, SNMP
Size:	WEB, SNMP
Rate:	10Gbps/40Gbps/100Gbps
Control mode:	APC

Deskripsi

100G Semiconductor Optical Amplifier

12LC Quad Din-rail Mount Fiber Patch Panel

Product Advantages

O-band, 1260~1340;
Power up to 10dBm
3 work modes, ACC, APC and AGC, for constant pump current, output power or gain are selectable;
DB9 port for RS232 communication and RJ45 port for SNMP function
220VAC or -48VDC dual power supply, optional.
RoHS compliant

Overview

E-link Semiconductor Optical Amplifier products provide the amplification around 1310nm. It can be used in the 10G/40G/100G system, suit for system design conveniently. Products are divided into 1*1, 2*2, 4*4 and 8*8 three kinds, respectively, to achieve 1-way, 2-way, 4-way and 8-way 1310nm 100G optical signal amplification. It provides output power up to be 10dBm.

Technical Indexes

100G systems	OBA (Example)
Parameters	Min	Typ	Max	Units	Remark
Operating wavelength	1290	1310	1330	nm
Port			8	port	8in put 8 out put
input power	-25		-10	dBm
Out put power	-8		-2	dBm	APC
Polarization dependent gain			2	dB
Bias current		300	400	mA	Single
Gain flatness			2	dB
Noise figure		7.5	8	dB	in put=-20dBm
Uniformity			1	dB
Stability			0.5	dB
Working temperature	0		55	℃
Storage temperature	-40		85	℃
Power			40	W
Control mode	APC
Operating Voltage	-48V DC or 220VAC			V
Size	1U 19 inch
Management	WEB, SNMP
Rate	10Gbps/40Gbps/100Gbps

Ordering information

Model	Description
LNK-100G-SOA1310-1	100G Semiconductor Optical Amplifier, 1310nm, 1CH
LNK-100G-SOA1310-2	100G Semiconductor Optical Amplifier, 1310nm, 2CH
LNK-100G-SOA1310-4	100G Semiconductor Optical Amplifier, 1310nm, 4CH
LNK-100G-SOA1310-8	100G Semiconductor Optical Amplifier, 1310nm, 8CH
