VGA Fiber Optic Extender

Name: VGA Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-R16-4-D
Price: 134.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: ISO9001, CE, FCC, RoHS

Nomor model: LNK-R16-4-D

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Negotiated

Kemasan rincian: Paket Ekspor Standar

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: T/t, paypal

Menyediakan kemampuan: 1000 pcs/mulut

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Suhu Operasi::	-5 hingga + 70 ° C	Kelembaban:	5% hingga 90%
Dimensi (WXDXH)::	16512027mm	Garansi:	Garansi gratis 1 tahun, pemeliharaan seumur hidup
Jam piksel maksimum:	380MHz	Adaptor daya::	DC 5V/2A

Suhu Operasi::	-5 hingga + 70 ° C
Kelembaban:	5% hingga 90%
Dimensi (WXDXH)::	16512027mm
Garansi:	Garansi gratis 1 tahun, pemeliharaan seumur hidup
Jam piksel maksimum:	380MHz
Adaptor daya::	DC 5V/2A

Deskripsi

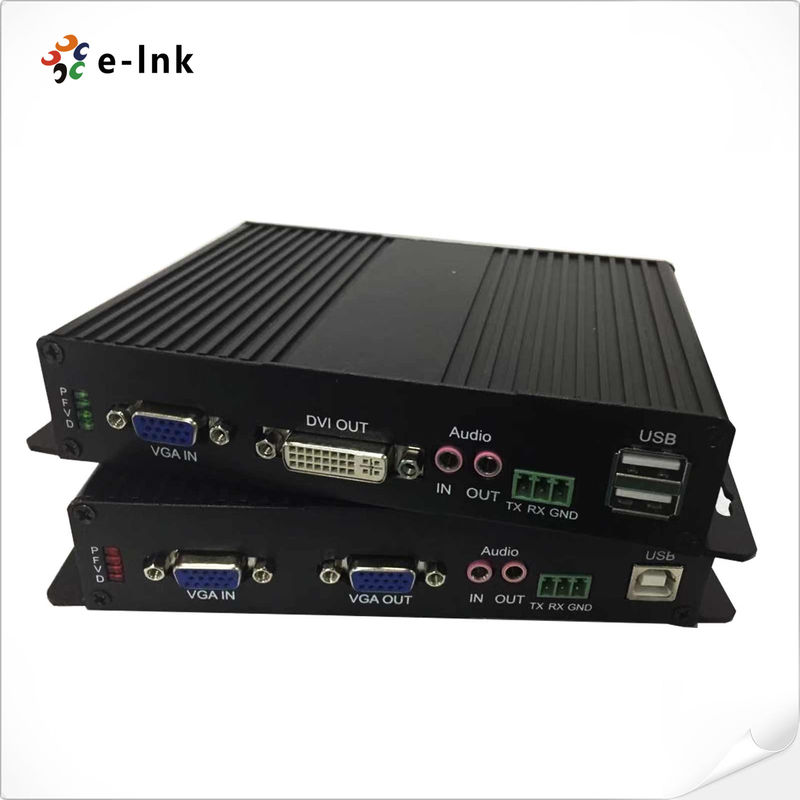

VGA Fiber Optic Extender

VGA Fiber Optic Extender Advantage

► Transmits VGA video signals up to 10km over one fiber optic cable;

► Support video resolution up to 1920*1080P@60Hz;

► Support keyboard and mouse signal transmission;

► Support external stereo audio unidirectional transmission;

► Support transmitter one channel signal output;

► Support RS232 signal unidirectional transmission, baud rate self-adaptive;

► High compatibility, can auto-match source and display device;

VGA Fiber Optic Extender Overview

The LNK-FVGA Fiber optic extender provides extension of VGA signals long distances over

one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, 1 Ch

RS232 signal and external 1 duplex audio transmission function. The extender can use for a

wide range of applications requiring long distance transmission of high resolution with high

quality by its good stability and powerful security.

VGA Fiber Optic Extender Technical Indexes

Parameter		Description
Video	Standards	VGA
	Maximum pixel clock	380MHz
	Resolution	1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz
	Impedance	75Ω
Audio	Interface	3.5mm earphone seat
	Format	44.1K,48K,96K,176K,192K
	Signal type	Stereo
RS232	Interface	Industrial terminal
	Signal direction	Bidirectional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
KVM	K/M TO PC	USB connect to PC
KVM	KEYBOARD/MOUSE	USB connect to keyboard and mouse
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	2.97Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	16512027mm 19inch 4U rack
	The warranty	1 year free warranty, life-long maintenance

VGA Fiber Optic Extender Ordering Information

Model	Details
LNK-FVGA-T	1080P VGA Fiber Optic Extender Transmitter
LNK-FVGA-R	1080P VGA Fiber Optic Extender Receiver
LNK-R16-4-D	16-slot, dual power supply-AC110-220V-19''4U- blackfor card-type media converter
