155M Single Fiber BIDI 1x9 Optical Transceiver, 20Km transmission with SMF

Name: 155M Single Fiber BIDI 1x9 Optical Transceiver, 20Km transmission with SMF
Brand: E-link China Technology Co.,LTD
SKU: LNK-BD9-155T3R5
Price: 10.40 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: RoHS,CE

Nomor model: LNK-BD9-155T3R5

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: US$9.4~US$12.5

Kemasan rincian: Transceiver Serat SFP

Waktu pengiriman: 3-5 hari kerja

Syarat-syarat pembayaran: L/C, T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan: 100000pcs/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                              155M Single Fiber BIDI transceiver, 1x9 Optical Transceiver 20Km, SMF fiber optic transceiver


Tegangan suplai:	+3.6V maks.	laju data:	155Mb/dtk
Voltase:	+5VDC	Sensitivitas Penerima:	-34dBm

Tegangan suplai:	+3.6V maks.
laju data:	155Mb/dtk
Voltase:	+5VDC
Sensitivitas Penerima:	-34dBm

Deskripsi

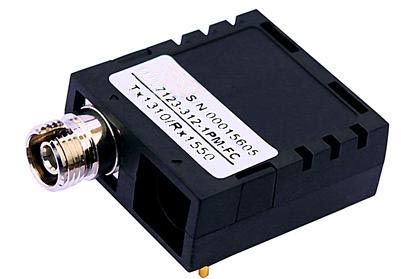

155M Single Fiber BIDI 1x9 Optical Transceiver, 20Km transmission with SMF

155M Single Fiber BIDI 1x9 Optical Transceiver

155M Single Fiber BIDI 1x9 Optical Transceiver

l 1×9 package with FC connector

l 1310nm FP Tx/1550nm PIN Rx and
1550nm FP TX/1310nm PIN RX

l 20Km transmission with SMF

l +3.3V single power supply

l LVPECL compatible data input/output interface

l Low EMI and excellent ESD protection

l laser safety standard IEC-60825 compliant

l Compatible with RoHS

Overview

The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).

Technical Indexes

Absolute Maximum Ratings

Parameter	Symbol	Minimum	Maximum	Units
Storage Temperature	Tst	-40	+85	°C
Operating Temperature	Top	0	+70	°C
Supply Voltage	Vcc	0	+3.6	V
Input voltage	Vin	GND	Vcc
Lead Soldering Temperature & Time	240/10			°C/s

Operation Environment

Parameter	Symbol	Minimum	Maximum	Units
Supply Voltage	Vcc	3.15	3.45	V
Ambient operating Temperature	Top	-40	+85	°C
Operating Relative Humidity	-	5	95	%

Transmitter Section

Parameter		Symbol	Min.	Typ.	Max.	Units
Data rate		-	-	155	-	Mb/s
Center Wavelength	Tx 1310	lo	1260	1310	1360	nm
Center Wavelength	Tx 1550	lo	1500	1550	1600	nm
Output Spectral width		Dl	-	-	4	nm
Average Optical Output Power	Tx 1310	Po	-15	-	-3	dBm
Average Optical Output Power	Tx 1550	Po	-15		-3	dBm
Extinction Ratio	Tx 1310	Er	12	-	18	dB
Extinction Ratio	Tx 1550	Er	12	-	18	dB
Rise/Fall Time(20%~80%)		Tr/Tf			0.26	ns
Total jitter		Tj			0.43	UI
Optical Eye Diagram		IEEE 802.3u and ANSI Fibre Channel Compatible
Input differential impendence		Zdiff		100		Ohm

Receiver Section

Parameter		Symbol	Min.	Typ.	Max.	unit
Data rate				155		Mb/s
Wavelength	1550 Rx	l	1500	1550	1600	nm
Wavelength	1310 Rx	l	1260	1310	1360	nm
Maximum Input Power		P_max	-3	-	-	dBm
Receiver Sensitivity		P_min	-		-34	dBm
Output differential impendence		Zdiff		100		Ohm
LOSS Thresholds		LOSS_D	-	-	-34	dBm
LOSS Thresholds		LOSS_A	-45

Pin Description

Pins	Name	Discription	NOTE
1	VeeR	Receiver Ground
2	RD+	IReceived Data Output (LVPECL)
3	RD-	Inv.Received Data Output (LVPECL)
4	SD	Signal Detected (LVPECL)
5	VccR	Receiver Power
6	VccT	Transmitter Power
7	TD-	Inv. Transmit Data Input (LVPECL)
8	TD+	Transmit Data Input (LVPECL)
9	VeeT	Transmitter Ground

Application

155M Single Fiber BIDI 1x9 Optical Transceiver, 20Km transmission with SMF 0

Ordering Information

Part Number

Product Description

LNK-BD9-155T3R5

155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, FC,20km, 0°C~+70°C

LNK-BD9-155T5R3

155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, FC,20km, 0°C~+70°C

Tags:

155M Single Fiber BIDI Module,Dual Gigabit to 2.5G Multiplexer
