Unframed E1 to Fiber Converter

Name: Unframed E1 to Fiber Converter
Brand: E-link China Technology Co.,LTD
SKU: Seri LNK-EF001
Price: 369.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: ISO9001, CE, FCC, RoHS

Nomor model: Seri LNK-EF001

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Negotiated

Kemasan rincian: Paket Ekspor Standar

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: T/t, paypal

Menyediakan kemampuan: 1000 pcs/mulut

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Suhu Operasi::	-10 ° C ~ 50 ° C.	Suhu penyimpanan:	-40 ° C ~ 80 ° C.
Dimensi (WXDXH)::	216x140x31mm (WXDXH)	Berat potongan:	1.25kg
Catu daya:	AC90V ~ 240V ； DC –48V ； DC +24V	Konsumsi daya:	≤10w

Suhu Operasi::	-10 ° C ~ 50 ° C.
Suhu penyimpanan:	-40 ° C ~ 80 ° C.
Dimensi (WXDXH)::	216x140x31mm (WXDXH)
Berat potongan:	1.25kg
Catu daya:	AC90V ~ 240V ； DC –48V ； DC +24V
Konsumsi daya:	≤10w

Deskripsi

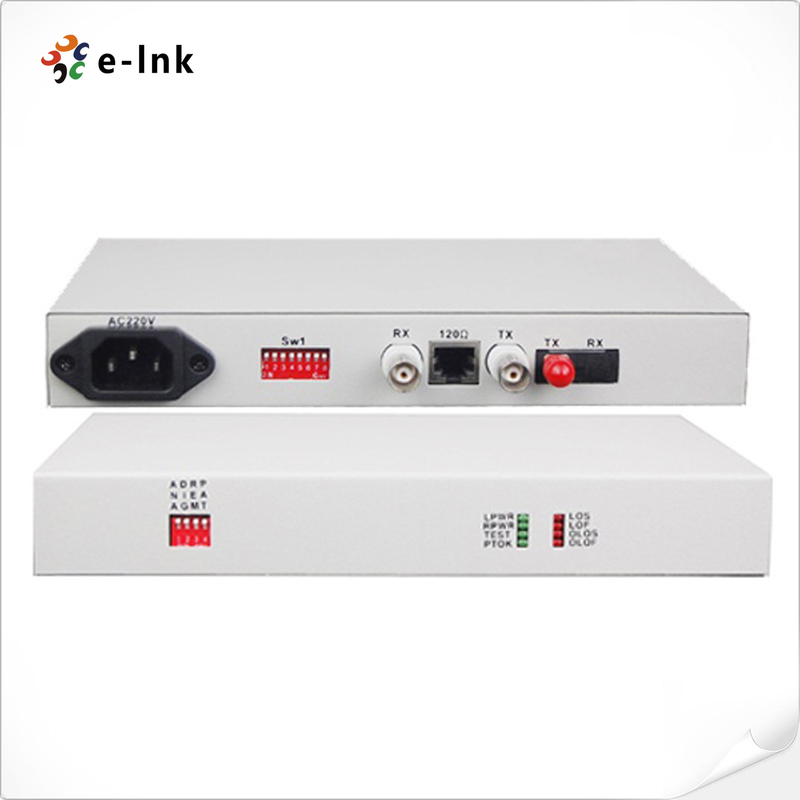

Unframed E1 to Fiber Converter

Unframed E1 to Fiber Converter Advantage

· Based on self -copyright IC

· Can detect the reason of optical signal losing is that the device power-off or transmission fiber broken, and indicate on LED

· Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;

· After strict testing and practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704

· Have three Loop Back Mode: E1 interface Loop Back (ANA),V.35 interface Loop Back(DIG),Command the remote V.35 interface Loop Back (REM)

· Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester

· AC 90~240V, DC-48V, DC+24V, DC Power and Polarity-Free

Unframed E1 to Fiber Converter Overview

This device provides one E1 interface and one optical interface to achieve interface conversion, rate conversion and timeslot extraction from E1 to Optical. When unframed mode, the data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Unframed E1 to Fiber Converter Technical Indexes

Parameter	Specification
Fiber
Multi-mode Fiber
Fiber Type	50/125um, 62.5/125um
Maximum transmission distance	2Km 62.5 / 125um single mode fiber, attenuation (3dbm/km) Wave Length: 820nm
Transmitting power	-12dBm (Min) ~-9dBm (Max)
Receiver sensitivity	-28dBm (Min)
Link budget	16dBm
Single-mode Fiber
Fiber Type	8/125um, 9/125um
Maximum transmission distance	120Km
Transmission distance	0~120Km 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wavelength	1310nm/1550nm
Transmitting power	-9dBm (Min) ~-8dBm (Max)
Receiver sensitivity	-27dBm (Min)
Link budget	18dBm
E1 Interface
Interface Standard	comply with protocol G.703
Interface Rate	n*64Kbps±50ppm
Interface Code	HDB3
E1 Impedance:	75Ω (unbalance), 120Ω (balance)
Jitter tolerance	In accord with protocol G.742 and G.823
Allowed Attenuation	0~6dBm
Power
Power supply	AC90V ~ 240V；DC –48V；DC +24V
Power consumption	≤10W
Dimension
Product size (WXDXH)	216X140X31mm
Simple packaging (WXDXH)	274X193X84mm
Piece weight	1.25KG
Working environment
Working temperature	-10°C ~ 50°C
Working Humidity	5%~95 % (no condensation)
Storage temperature	-40°C ~ 80°C
Storage Humidity	5%~95 % (no condensation)

Unframed E1 to Fiber Converter Application

Unframed E1 to Fiber Converter 0
