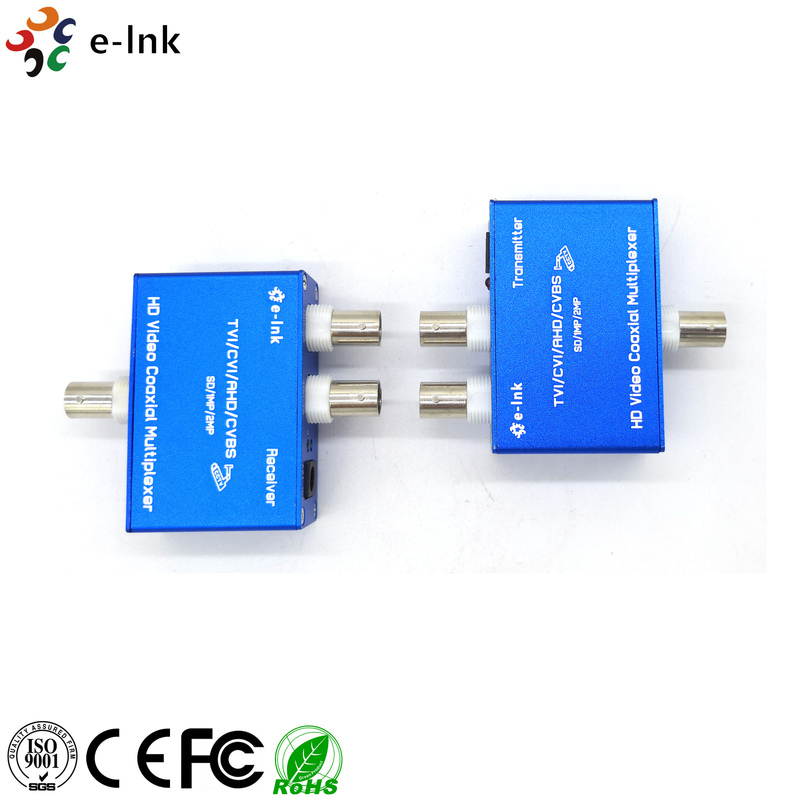

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer Advantage

► 2 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable

► Designed according to projects with minimum installation volume requirement

► Long distance transmission up to 400m

► Frequency Division Multiplexing, with all CVI/AHD/TVI video and data transmission real-time and all images high-definition and non-delay.

► Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,

► One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)

► Maintaining high quality CVI/AHD/TVI video & anti-interference immunity

► Easy installation with BNC harness

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer Overview

LNK-MVHD-102 series Coaxial HD video standard on the market at present is divided into three kinds of HD CVI

(they are Dahua company standards, Xiongmai technology AHD and Hikvision TVI standard).

Its resolution is divided into 1 million pixels (720P), 1.3 million pixels (960P), and 2 million pixels (1080P), and other

three kinds of the resolution of the video image.

This product uses special compression modulation technology, on the front end (transmitter) will 2-Ch CVI/AHD/TVI HD

video camera is compressed, made into digital signal in coaxial cable transmission, the back-end (receiver) through

demodulation, reductive into 2 HD signals after decompression, for HD DVR (TVI/CVI/AHD) or matrix is used. This

series of products can be divided into the 100 meters, 200 meters, 400 meters, such as the transmission distance and

different models.

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer Technical Indexes

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer Ordering Information
