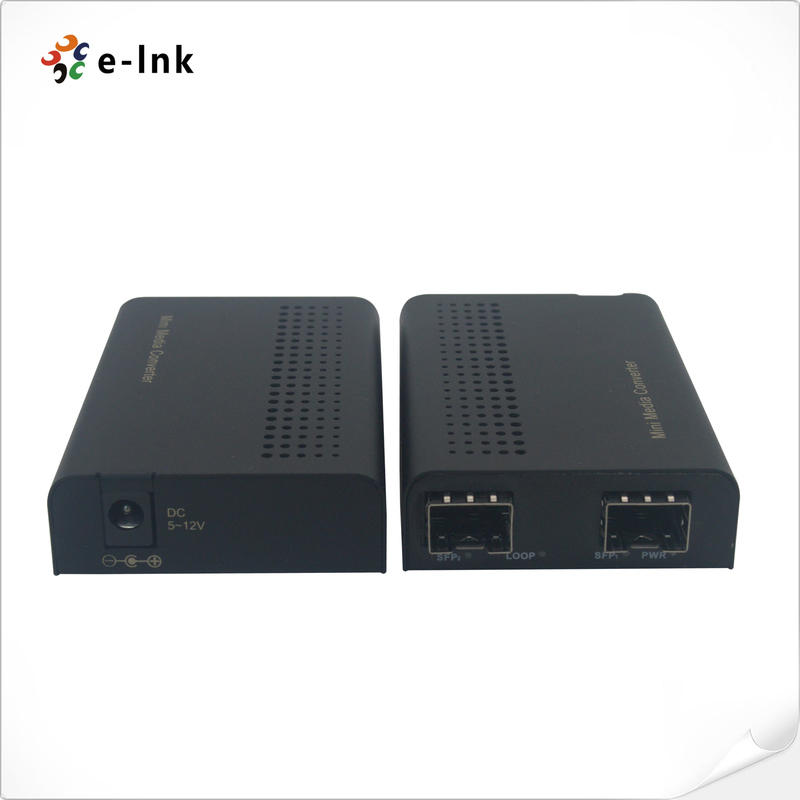

Mini 10G OEO Media Converter (3R Repeater)

Name: Mini 10G OEO Media Converter (3R Repeater)
Brand: E-link China Technology Co.,LTD
SKU: LNK-MN-OEO-10GSS
Price: 64.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: CE, FCC, RoHS,

Nomor model: LNK-MN-OEO-10GSS

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Negotiated

Kemasan rincian: Paket Ekspor Standar

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: T/t, paypal

Menyediakan kemampuan: 1000 pcs/mulut

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Dimensi (W X H X D):	58 (W) X 20 (H) X 90 (L) (mm)	Fungsi peralatan:	Pengulang 3R
Kecepatan transmisi:	8,5Gb/dtk-11,7Gb/dtk	Panjang gelombang:	850nm/1310nm/1550nm
Konversi berarti:	Mode cut-through	Tegangan input:	DC 5V~12V

Dimensi (W X H X D):	58 (W) X 20 (H) X 90 (L) (mm)
Fungsi peralatan:	Pengulang 3R
Kecepatan transmisi:	8,5Gb/dtk-11,7Gb/dtk
Panjang gelombang:	850nm/1310nm/1550nm
Konversi berarti:	Mode cut-through
Tegangan input:	DC 5V~12V

Deskripsi

Mini 10G OEO Media Converter (3R Repeater)

Mini 10G OEO Media Converter (3R Repeater) Advantage

► Support Loop back

► Support Jumbo Frame

► Transparent Transport and very low delay

► Support ITUT prescribed DWDM/CWDM wavelength,and can also display it's DDM function.

► 3R function (Regeneration, Reshaping, Retiming)

► Support hot plugging

► Support 1U Rack (12 channel) and standalone use

► Full State Led display

► Easy installation

Mini 10G OEO Media Converter (3R Repeater) Overview

E-link Mini-type 10G (8.5G~11.7G) OEO Converter (3R Repeater) is connection between fiber to

fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance

transmission. The OEO is for network backbone(SAN, LAN, MAN).

Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet etc. And the OEO can

be applied in Telecommunication room, R&D laboratory, Data center, and etc.

Support 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.

Mini 10G OEO Media Converter (3R Repeater) Technical Indexes

Performance Data	Technical Indexes
Equipment function	3R Repeater
Transmission Speed	8.5Gb/s-11.7Gb/s
Protocols	8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Interface Type	SFP+ to SFP+
Transmission Distance	SFP+ module: up to 80km
Maximum Packet Forwarding Rate	14,880,950/S
Power Requirement	Rack-mountable : AC 85 ～ 220V Standalone: DC 5~12V Power consumption: ≤4W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	Standalone :58 (W) x 20 (H) x 90 (L) (mm)
