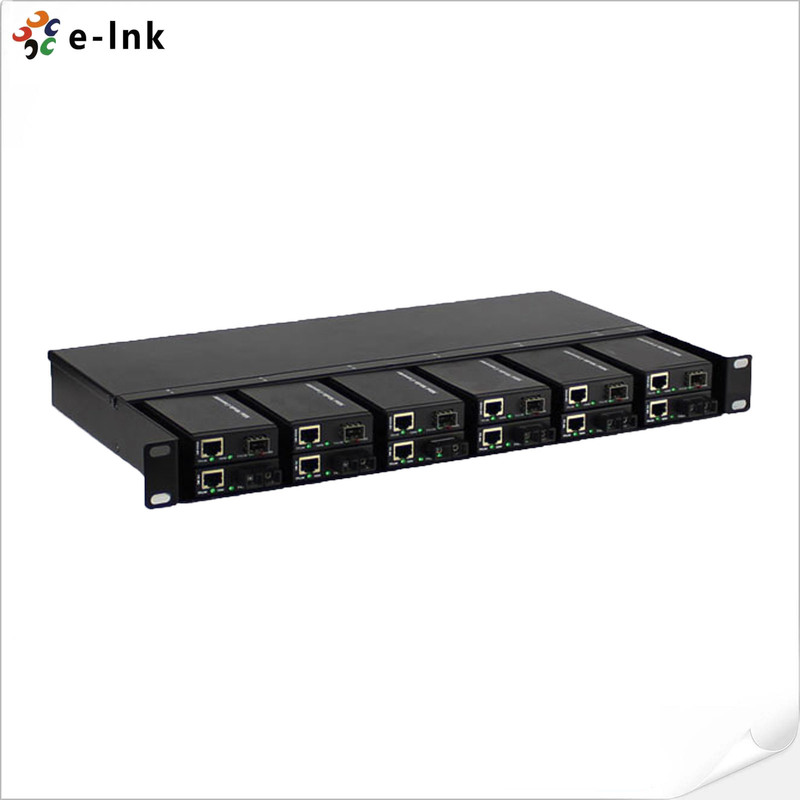

1U 12 Slots Mini Fiber Media Converter Rack

Name: 1U 12 Slots Mini Fiber Media Converter Rack
Brand: E-link China Technology Co.,LTD
SKU: LNK-R12-2-A
Price: 137.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-link

Sertifikasi: CE, FCC, RoHS

Nomor model: LNK-R12-2-A

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: $5-269

Kemasan rincian: Paket Ekspor Standar

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: T/t, paypal

Menyediakan kemampuan: 1000 pcs/mulut

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      1U fiber media converter rack, 12 slots mini fiber converter, rack mount fiber optic converter


Ukuran:	45mm （h） x 485mm （w） x 270mm （d）	Jumlah slot:	12
Struktur:	rak 1U	Tegangan output:	DC12V
Output daya:	36W maksimum	Suhu operasi:	-10 ~ 55ºC

Ukuran:	45mm （h） x 485mm （w） x 270mm （d）
Jumlah slot:	12
Struktur:	rak 1U
Tegangan output:	DC12V
Output daya:	36W maksimum
Suhu operasi:	-10 ~ 55ºC

Deskripsi

1U 12 Slots Mini Fiber Media Converter Rack

1U 12 Slots Mini Fiber Media Converter Rack Advantage

► Suitable for standard 19 inch rack

► 1U, maximum 12 slots capacity

► Supports redundant power supply modules

► Supports hot-swappable operating

► Two side LED indicators (front and rear)

1U 12 Slots Mini Fiber Media Converter Rack Overview

The 1U 12 slots Fiber media converter rack is specially designed for mini Fiber Media Converter.

The chassis can install up tp 12 mini media converters, which provides for space saving and easy

cabling. The chassis works with dual redundant power supply.

1U 12 Slots Mini Fiber Media Converter Rack Technical Indexes

Parameter	Specifications
Number of slots	12
Structure	1U rack
Dimension	45mm(H)x 485mm(W)x 270mm(D)
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
Output voltage	DC12V
Power output	36W maximum
Ripple	≤20 mv
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
