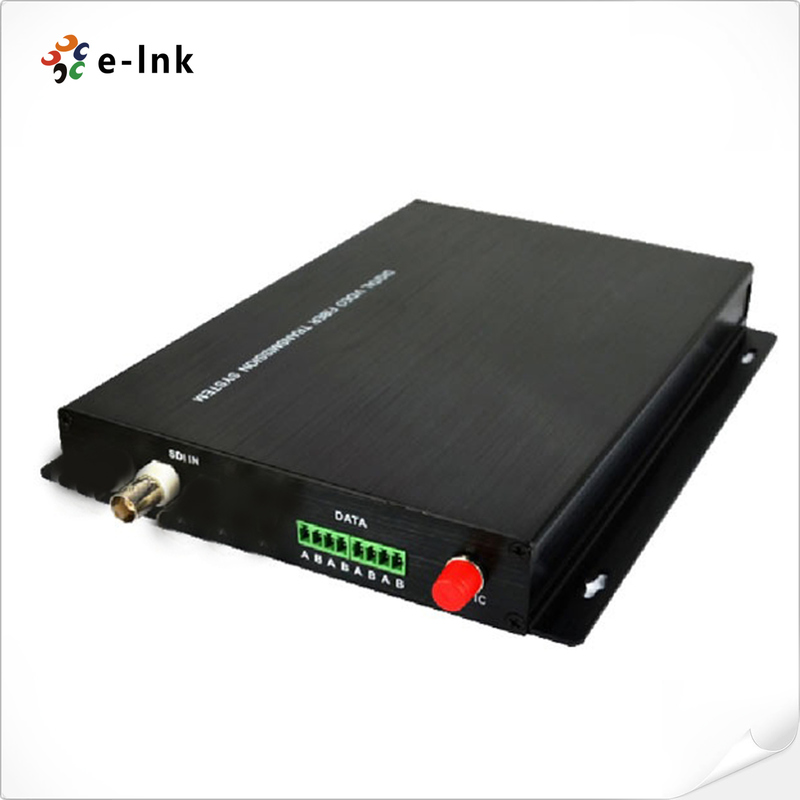

Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver

Name: Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver
Brand: E-link China Technology Co.,LTD
SKU: Seri LNK-2000
Price: 218.90 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: E-Link

Sertifikasi: RoHS,CE

Nomor model: Seri LNK-2000

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 pcs

Harga: Dapat dinegosiasikan

Kemasan rincian: Kemasan Karton

Waktu pengiriman: 3-12 hari kerja

Syarat-syarat pembayaran: T/T, Western Union, MoneyGram, Paypal

Menyediakan kemampuan: 1000 PC/bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Saluran input:	1-8	Kerugian refleksi:	> 15db
Keseimbangan:	0-250m	Konektor:	75Ω BNC
Saluran keluaran:	1-8	Tingkat Sinyal:	Nominal 800mv

Saluran input:	1-8
Kerugian refleksi:	> 15db
Keseimbangan:	0-250m
Konektor:	75Ω BNC
Saluran keluaran:	1-8
Tingkat Sinyal:	Nominal 800mv

Deskripsi

Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver

Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver

Advantages

· 1-8 ch unidirectional SD-SDI/ASI,TS stream with embedded audio over one fiber

· SMPTE 259, SMPTE 297, SMPTE310, SMPTE305

DVB-ASI (270Mb/s) standard

· Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

· 150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)

· Optional network management system

· LED status indicators monitor the critical parameters

· Support hot swap

· Support stand-alone, 1U rack mount and 4U rack mount

Overview

The SD-SDI/ASI provides customer with the most cost-effective solution for transmission of 1-8 channel unidirectional SDI/ASI digital video signal, with 1+1 remote input redundancy and 1 local input redundancy optional. It is an easy installation and adjustment free device while providing high quality, real-time video. It is widely used in the field of CCTV, video surveillance, and etc.

Technical Indexes

Serial TV BNC Input
TV signal standard	SMPTE 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate
Input channel	1-8
Reflection loss	>15DB
Equilibrium	0-250m
Connector	75Ω BNC
Serial TV BNC Output (EO/OE)
Output channels	1-8
Signal level	800mV nominal
Rise/fall time	200Ps nominal
Overshoot	<10% amplitude
Reflection loss	> 15dB
Jitter	< 0.3UI
Connector	75Ω BNC
Optic Output
Channel	1
Type	Single-mode/fiber (multimode optional)
Wavelength	CWDM wavelenth
Reflection loss	> 15dB
Jitter	< 0.3UI
Connector	FC/PC(ST/PC optional)
Power and environmental indicator
Operating temperature	-45℃～＋50℃
Pressure	1A@12VDC
Power	12W
EMI/RFI	FCC Part 15 Class A, EU EMC standard
Average time trouble-free	>100000 hours
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:

Order Information

Model	Description
LNK-2010-T	1-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2010-R	1-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2020-T	2-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2020-R	2-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2040-T	4-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2040-R	4-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2080-T	8-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
LNK-2080-R	8-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
