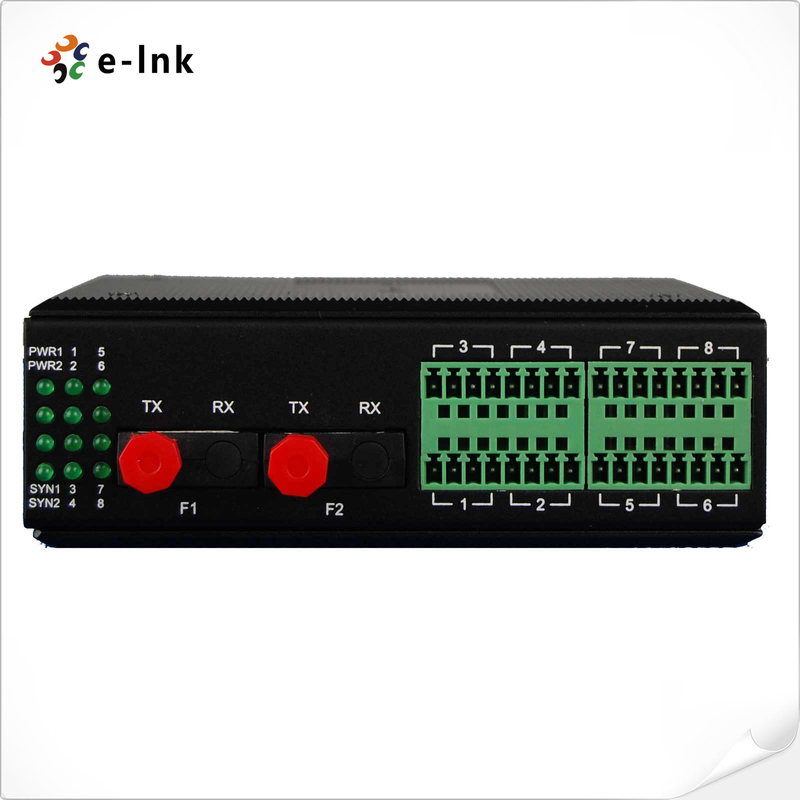

Industrial 4 Channel RS232 RS485 RS422 Fiber Media Converter Dual Ring Redundant

Industrial 4 Channel RS232 RS485 RS422 Fiber Media Converter Dual Ring Redundant

Model: LNK-GYS200 series

 Product Description & Overview

The Industrial 1~4Ch RS232/RS422/RS485 Double-ring Fiber Media Converter represents an

advanced networking solution for industrial serial communication systems requiring high reliability

and flexible topology configurations. This robust media converter supports 1 to 4 channels of RS232,

RS422, and RS485 serial interfaces over fiber optic infrastructure, enabling versatile network

architectures including point-to-point connections, chain networks, star configurations, and redundant

ring topologies with self-healing capabilities. The dual-ring protection mechanism ensures continuous

operation by automatically detecting fiber breaks and rerouting data through alternative paths within

30 milliseconds, maintaining uninterrupted communication in mission-critical industrial applications.

Engineered specifically for demanding industrial environments, this converter effectively resolves the

traditional limitations of serial interface communication by extending transmission distances while

maintaining high-speed data rates up to 115.2kbps per channel. The implementation of fiber optic

technology completely eliminates electromagnetic interference, ground loop problems, and lightning-

induced damage that commonly plague copper-based serial networks. The device's advanced optical

isolation provides complete electrical separation between connected equipment, significantly enhancing

data communication reliability, security, and confidentiality across all transmission channels.

This sophisticated media converter finds ideal application in various industrial sectors including factory

automation, process control systems, and critical infrastructure monitoring where network reliability is

paramount. The flexible topology support allows for seamless integration into existing networks while

providing scalability for future expansion. With its robust construction and intelligent self-healing capabilities,

this solution offers industrial operators a reliable and secure communication platform that dramatically

improves network resilience while reducing maintenance costs associated with traditional serial

communication systems in electrically challenging environments, making it particularly suitable for

transportation management systems, energy distribution networks, and industrial IoT applications

requiring guaranteed data delivery.

Key Features Bullets

• Proprietary IC Architecture
  Built on self-developed integrated circuits, delivering optimized signal processing and enhanced system reliability

• Multi-Channel Independent Interface Design
  Configurable 1-4 independent serial ports with complete physical isolation between all channels

• Dual-Fiber Redundant Ring Protection
  Dual optical fiber lines with automatic sub-50ms switchover during line failures to maintain communication integrity

• Flexible Interface Configuration Options
  Supports RS232/RS422/RS485 interfaces with 3-wire RS232 support and comprehensive flow control signals

• Automatic Baud Rate Adaptation
  All serial channels support automatic baud rate detection from 0 to 115,200bps for asynchronous data transmission

• Advanced Network Topology Support
  Enables point-to-point, chain, star, and redundant ring network configurations with self-healing capability

• Industrial-Grade Electrical Protection
  Complete optical isolation providing immunity to EMI, ground loops, and lightning-induced surges

• High-Speed Network Self-Healing
  Redundant ring network protection with automatic fault detection and recovery within 30 milliseconds

• Wide Operating Temperature Range
  Industrial temperature rating from -40°C to 85°C for harsh environment deployment

• Secure Data Transmission
  Fiber optic technology ensuring complete electrical isolation and data confidentiality across all channels

Technical Specifications & Indexes

Ordering information

Application Scenarios

• Industrial automation control network redundant ring systems

• Critical infrastructure monitoring and protection networks

• Factory production line multi-device communication networks

• Power distribution SCADA system redundant fiber optic networks

• Transportation signal control and monitoring systems
