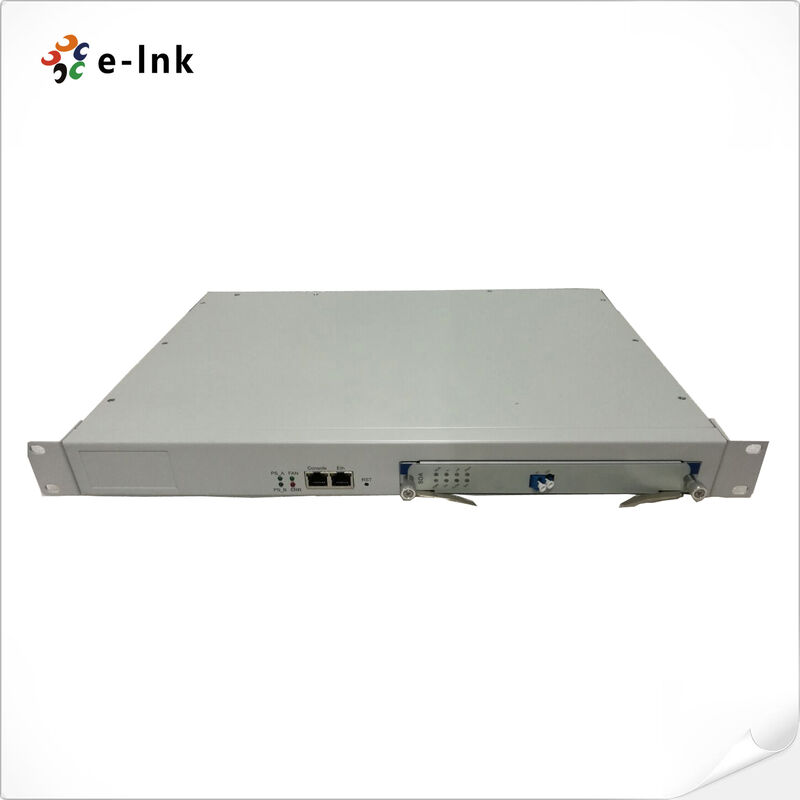

100G Semiconductor Optical Amplifier

Name: 100G Semiconductor Optical Amplifier
Brand: E-link China Technology Co.,LTD
SKU: LNK-100G-SOA1310-1
Price: 2,549.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: E-link

Sertifikasi: ISO9001, CE, FCC, RoHS

Nomor model: LNK-100G-SOA1310-1

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Harga: $2499-2599

Kemasan rincian: Paket Ekspor Standar

Waktu pengiriman: 5-12 hari kerja

Syarat-syarat pembayaran: T/T,L/C,Paypal,Alibaba

Menyediakan kemampuan: 1000 pcs/mulut

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Suhu Operasional::	0 hingga 50 ℃	Menjaga suhu:	-40~85ºC
Modus Kontrol:	Apc	Tegangan Operasi:	-48V DC Atau 220VAC
kecepatan:	10Gbps/40Gbps/100Gbps	Kebutuhan Daya:	DC5V 3A
Kekuatan:	40W	Ukuran:	1U 19 inci

Suhu Operasional::	0 hingga 50 ℃
Menjaga suhu:	-40~85ºC
Modus Kontrol:	Apc
Tegangan Operasi:	-48V DC Atau 220VAC
kecepatan:	10Gbps/40Gbps/100Gbps
Kebutuhan Daya:	DC5V 3A
Kekuatan:	40W
Ukuran:	1U 19 inci

Deskripsi

100G Semiconductor Optical Amplifier

100G Semiconductor Optical Amplifier Advantage

► O-band, 1260~1340;

► Power up to 10dBm;

► 3 work modes, ACC, APC and AGC, for constant pump current, output power or gain are selectable;

► DB9 port for RS232 communication and RJ45 port for SNMP function

► 220VAC or -48VDC dual power supply, optional.

► RoHS compliant

100G Semiconductor Optical Amplifier Overview

E-link Semiconductor Optical Amplifier products provide the amplification around 1310nm. It can be used in the 10G/40G/100G system, suit for system design conveniently. Products are divided into 1*1, 2*2, 4*4 and 8*8 three kinds, respectively, to achieve 1-way, 2-way, 4-way and 8-way 1310nm 100G optical signal amplification. It provides output power up to be 10dBm.

100G Semiconductor Optical Amplifier Technical Indexes

100G systems	OBA (Example)
Parameters	Min	Typ	Max	Units	Remark
Operating wavelength	1290	1310	1330	nm
Port			8	port	8in put 8 out put
input power	-25		-10	dBm
Out put power	-8		-2	dBm	APC
Polarization dependent gain			2	dB
Bias current		300	400	mA	Single
Gain flatness			2	dB
Noise figure		7.5	8	dB	in put=-20dBm
Uniformity			1	dB
Stability			0.5	dB
Working temperature	0		55	℃
Storage temperature	-40		85	℃
Power			40	W
Control mode	APC
Operating Voltage	-48V DC or 220VAC			V
Size	1U 19 inch
Management	WEB, SNMP
Rate	10Gbps/40Gbps/100Gbps

100G Semiconductor Optical Amplifier Ordering Information

Model	Description
LNK-100G-SOA1310-1	100G Semiconductor Optical Amplifier, 1310nm, 1CH
LNK-100G-SOA1310-2	100G Semiconductor Optical Amplifier, 1310nm, 2CH
LNK-100G-SOA1310-4	100G Semiconductor Optical Amplifier, 1310nm, 4CH
LNK-100G-SOA1310-8	100G Semiconductor Optical Amplifier, 1310nm, 8CH
